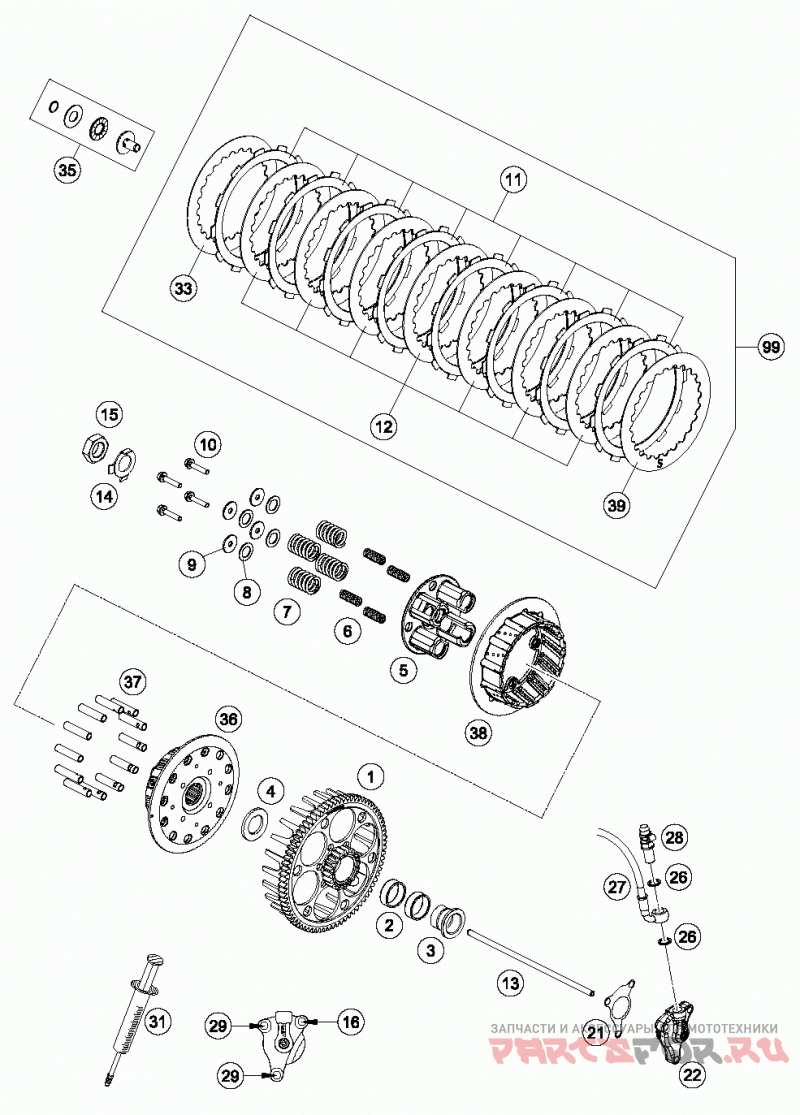

Сцепление для мотоциклов Husqvarna FS 450 ENGINE (2017)

Москва и регионы России

Сцепление

Husqvarna FS 450 ENGINE

Сцепление

#

oem код

название

цена

1

Clutch basket

Clutch basket

2

NEEDLE BEAR K 25X29X10

NEEDLE BEAR K 25X29X10

3

COLLARSLEEVE

COLLARSLEEVE

4

WASHER 22 X 36,5 X 3

WASHER 22 X 36,5 X 3

5

PRESSURE PLATE

PRESSURE PLATE

6

OPENING SPRING APTC 04

OPENING SPRING APTC 04

7

CLUTCH SPRING APTC 2004

CLUTCH SPRING APTC 2004

8

WASHER 20 X 12,5 X 1

WASHER 20 X 12,5 X 1

9

WASHER 5,5X20X1,5

WASHER 5,5X20X1,5

10

HH COLLAR SCREW M5X25 ISA30

HH COLLAR SCREW M5X25 ISA30

11

Lining disc 1,95mm

Lining disc 1,95mm

12

INTERMEDIATE DISC 1,4MM 2002

INTERMEDIATE DISC 1,4MM 2002

13

PUSH ROD

PUSH ROD

14

Видимая пластина

Видимая пластина

15

HEXAGON NUT DIN0936-M18X1,5 R.

HEXAGON NUT DIN0936-M18X1,5 R.

16

HH collar screw M6x30 TX30

HH collar screw M6x30 TX30

21

GASKET FOR SLAVE CYLINDER

GASKET FOR SLAVE CYLINDER

26

sealing ring DIN 7603 10x14x1

sealing ring DIN 7603 10x14x1

27

CLUTCH PIPE 09

CLUTCH PIPE 09

28

HOLLOW SCREW + COPPER GASKET

HOLLOW SCREW + COPPER GASKET

29

HH collar screw M6x20 TX30

HH collar screw M6x20 TX30

31

VENT INJEKTION HYDR. CLUTCH

VENT INJEKTION HYDR. CLUTCH

33

INTERMEDIATE DISC 1MM 2002

INTERMEDIATE DISC 1MM 2002

35

PRESSURE PIECE CPL.

PRESSURE PIECE CPL.

36

HUB INSIDE

HUB INSIDE

37

Гильца

Гильца

38

HUB OUTSIDE

HUB OUTSIDE

39

INTERMEDIATE DISC 1MM

INTERMEDIATE DISC 1MM

99

CLUTCH DISC PACKAGE

CLUTCH DISC PACKAGE
