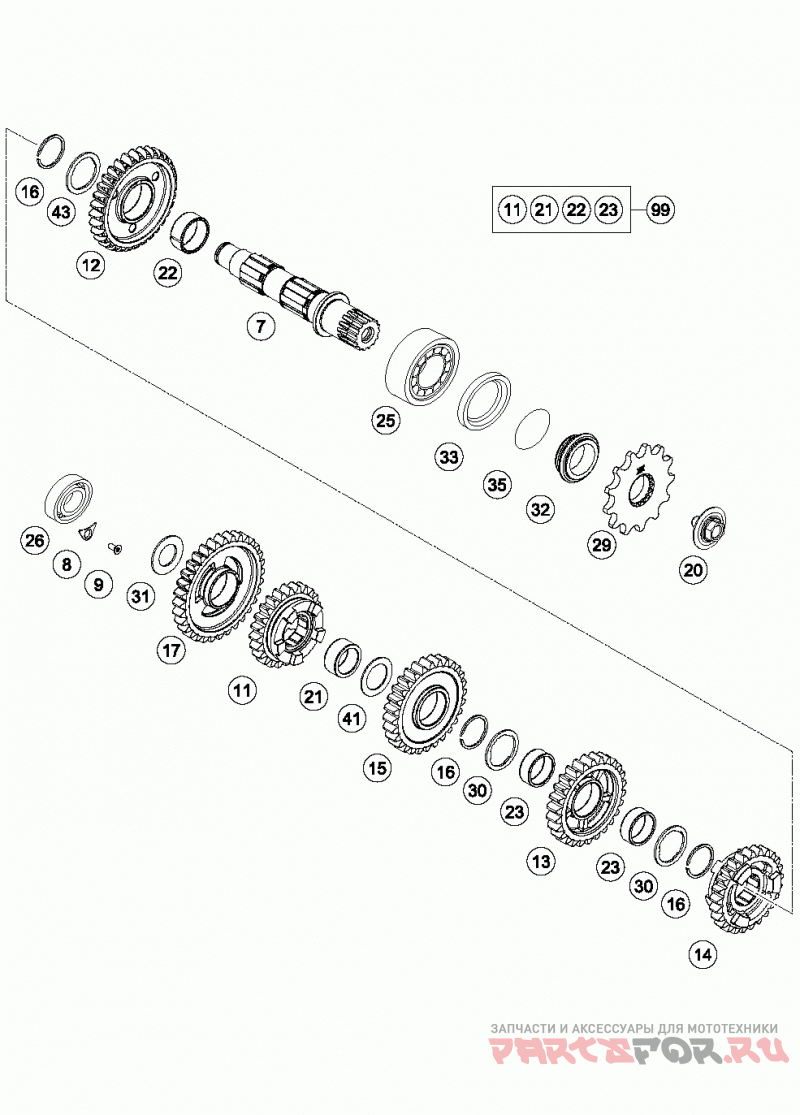

Трансмиссия 2-контрпривод

Husqvarna FE 250 ENGINE

Husqvarna
#oem кодцена
7
77733110000
Промежуточный вал
8
75030085000
RETAINING PLATE F. CS BEARING
9
0019050121S
INT. TORX FLAT HEAD M5X12 T25
11
72033016000
SLIDING GEAR 6TH GEAR, 20T
12
77733112000
IDLER GEAR 2ND G. T=30
13
77733114100
IDLER GEAR 4.G. Z=28
14
77733115100
SLIDING GEAR 5.G.,Z=23
15
77733113200
Idler gear 3.G, Z=24
16
0417024000
CIRCLIP WS24
17
77733011100
Idler Gear 1th Z=32
20
59033034044
SCREW 10.9+SPRING WASHER
21
0405202612
NEEDLE BEARING K 20X26X12
22
0405242812
NEDDLE BEAR. K24X28X11,9 DIV.
23
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
25
49030023000
cylindrical roller bearing NJ205
26
0625062035
BALL BEARING 6203 JR2 C3
29
79233029013
SPROCKET 13T
29
79233129014
ENGINE SPROCKET 14Z
30
77733043000
STOP DISC 23,4X31X1,5
31
77233020000
STOP DISK 17,2X30X1,3
32
78133014000
SPACER SLEEVE COUNTER
33
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
35
0770020220
O-RING 25,12X1,78 NBR70
41
54833080000
STOP DISC 20,2X30X1
43
77733044000
STOP DISC 24X32X1,5
99
00050000941
COUNTER SHAFT REP.KIT 4 STROKE
