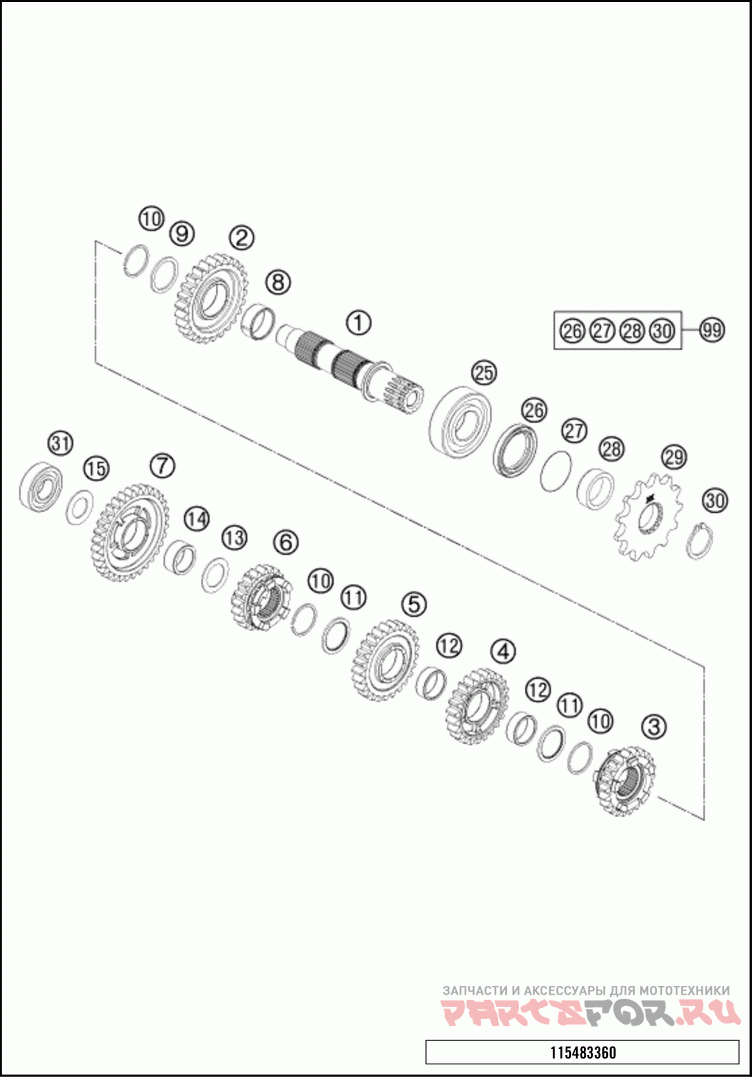

Трансмиссия 2-контрпривод

Husqvarna 2016 TE 300 ENGINE

Husqvarna
#oem кодцена
1
54833210100
COUNTER SHAFT CPL.
2
54833212100
IDLER GEAR 2. G., Z=26
3
54833215100
SLIDING GEAR 5.G., Z=22
4
54833214100
IDLER GEAR 4.G., Z=23
5
54833213000
IDLER GEAR 3.G., Z= 25
6
54833216000
SLIDING GEAR 6.G., Z=20
7
54833211100
IDLER GEAR 1. G, Z=32
8
0405242812
NEDDLE BEAR. K24X28X11,9 DIV .
9
54833044000
STOP DISC 25X31X1,5
10
0417024000
CIRCLIP WS24
11
54833043000
STOP DISC 25X0,8X30X30X7H
12
0405222611
NEEDLE BEAR.K 22X26X10 DIVIDED
13
54833080000
STOP DISC 20,2X30X1
14
0405202612
NEEDLE BEARING K 20X26X12
15
56033030000
STOP DISC 17,2X30X1
25
54833025000
BALL BEARING TM-SC05C20C4 NTN
26
0760324571
SHAFT SEAL RING 32X45X7 BSLNBR
27
0770250020
O-RING 25,00X2,00 NBR 70
28
54833032011
SPACER SLEEVE DRIVE END 2003
29
79233029013
FRONT SPROCKET 13-T
29
79233029014
FRONT SPROCKET 14-T
30
52033096000
LOCK RING DIN0471-25X1 ,64SD
31
0625062035
BALL BEARING 6203 JR2 C3
99
00050000940
COUNTER SHAFT REP .KIT 2 STROKE
