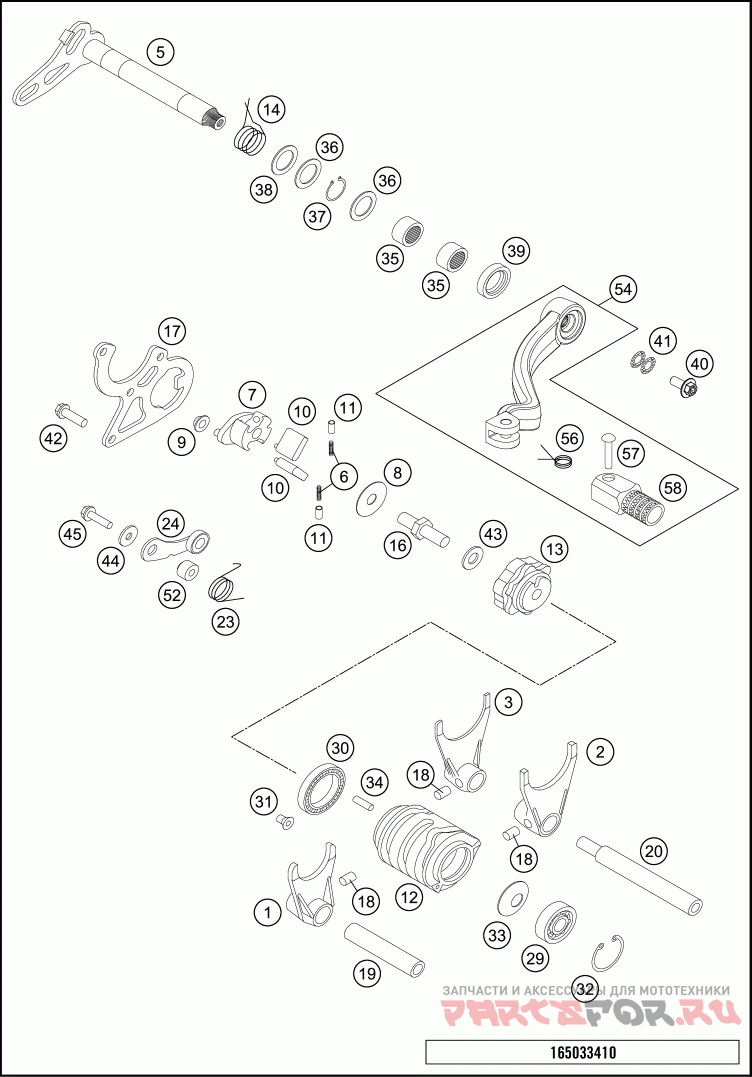

Механизм переключения

Husqvarna 2016 TE 125 ENGINE

Husqvarna
#oem кодцена
1
50334001200
SHIFTING FORK 5TH/6TH GEAR
2
50334002200
SHIFTING FORK 2ND/4TH GEAR
3
50334003200
SHIFTING FORK 1ST/3RD GEAR
5
50334005100
SHIFTING SHAFT CPL.
6
50334007052
SPRING FOR RA TCHET 0,5X11,5
8
50334007054
STOP DISK 8,2X26X0,7
9
50334007053
BUSHING 6X8X12X4,5
10
50334007150
SHIFTING RA TCHET 125/200
11
50334007051
PRESSURE END PAD 4,1X5,6X8,4
12
50334012300
SHIFTING DRUM 06
14
50334014000
RETURN SPRING 3MM
16
50334016000
SPECIAL SCREW M8X21,5 WS=12
18
0402061000
NEEDLE ROLLER ZRB 6X10
19
50334019000
SHIFTING ROD DRIVE 11,8X67,5
20
50334020000
SHIFT . ROD DRIVE END 11,8X94,5
24
50334024144
LOCA TING LEVER CPL. 08
29
0625060006
BALL BEARING 6000 RS1 C3
30
0625618050
BALL BEARING 61805 C3
31
0991050102
FLAT H.SCEW DIN7991-M5X10 10.9
32
0472260120
LOCK RING DIN0472-26X1 ,2
33
0093251209
SPRING WASHER 12,2X25X0,9
34
0402040980
NEEDLE ROL.DIN540 2 NRB 4X9,8
35
54632095000
NEEDLE BEAR.HK 1412 14X20X12
36
49033031000
STOP DISK 14,3X20X1
37
0471140100
LOCK WASHER DIN0471-14X1
38
49033031015
STOP DISK 14,2X22X1,5
39
0760142460
SHAFT SEAL RING 14X24X6 B
40*
0024060156S
HH COLLAR SCREW M6X15 TORX30
41*
50233041500
NORDLOC K WASHER M6
42
0025060166
HH COLLAR SCREW M6X16 TX30
43
0125080003
WASHER DIN0125-A 8,4
44
0349000050
WASHER DIN7349-5X15 X2
45
0025050206
HH COLLAR SCREW M5X20 TX30
52
54634052300
SLEEVE FOR LOCKING LEVER
54
54734031000
SHIFT LEVER CPL. 2-STROKE 2001
56
54634032100
SHIFTING LEVER SPRING 250
57
54634031050
BOL T 6X25 FOR SHIFT LEVER
58
54634131000
STEP PLATE FOR SHIFT LEVER 250
