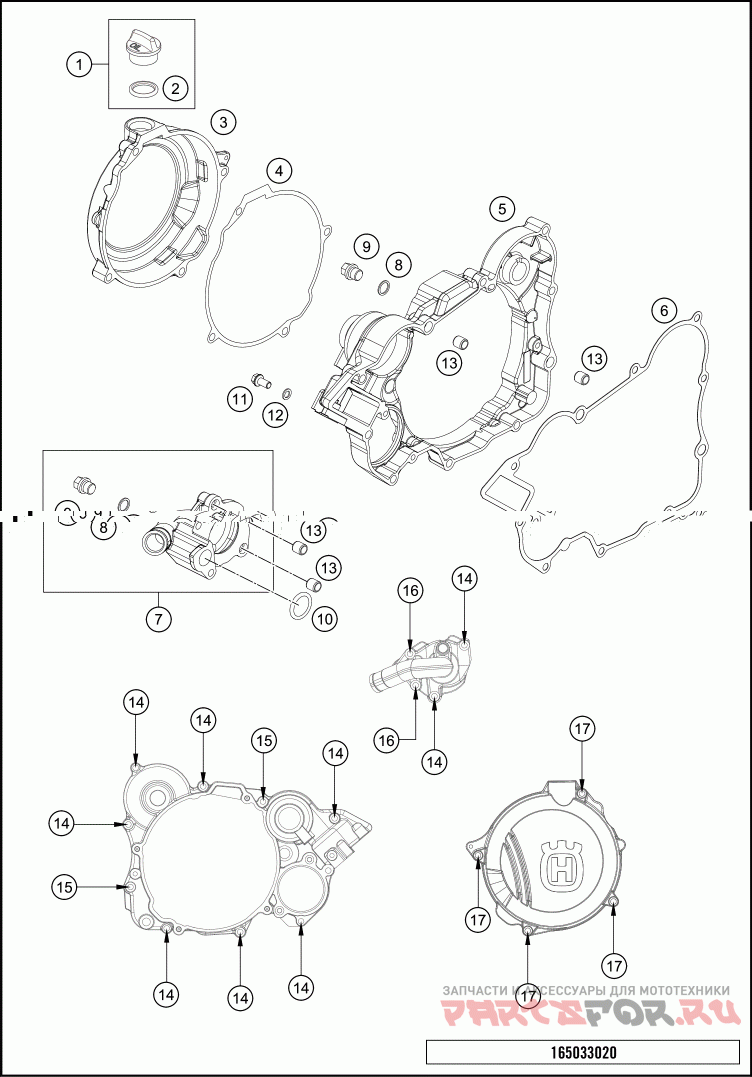

Кожух сцепления

Husqvarna 2016 TE 125 ENGINE

Husqvarna
#oem кодцена
1
79430020033
OIL FILLER CAP M24x3 WITH O-R
2
0770160030
O-RING 16,00X3,00 NBR 70
3
50330626000KA
CLUTCH OUTSIDE COVER
4
50330027000
CLUTCH OUTS.COVER GASKET 1MM
5
5033000114415
CLUTCH COVER CPL. 125/200 09
6
50330025000
CLUTCH COVER GASKET 0,5MM
7
50335052033
WATERPUMP COVER 125/200 98
8
0603100141
COPPER GASKET DIN7603-10X14X1
9
0910100003
PLUG DIN0910-M 10X1
10
0770191015
O-RING 19,00X3,00 NBR
11
0025060126
HH COLLAR SCREW M6X12 TX30
12
0603061001
CU-SEAL RING DIN7603-6X10X 1
13
49030090100
DOWEL 9,8 X 7 X 10
14
0025060356
HH COLLAR SCREW M6X35 TX30
15
0025060406
HH COLLAR SCREW M6X40 TX30
16
0025060506
HH COLLAR SCREW M6X50 TX30
17
0025060306
HH COLLAR SCREW M6X30 TX30
