Сцепление

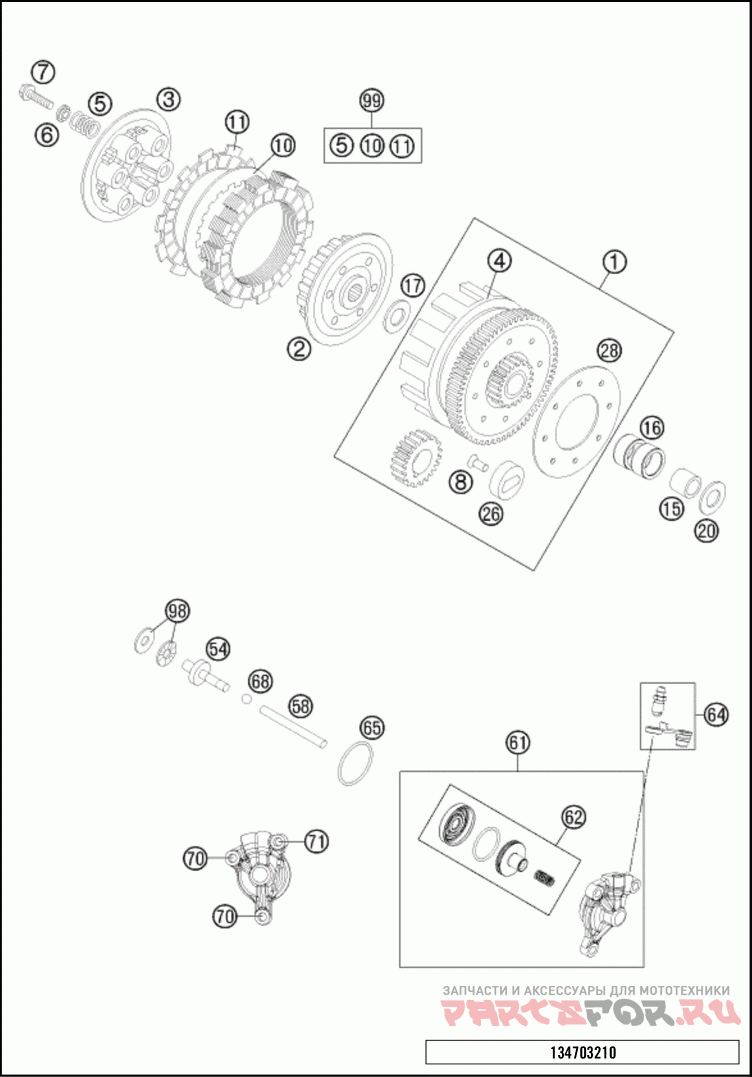

Husqvarna 2016 TC 85 ENGINE

Сцепление

#

oem код

название

цена

1

OUTER CLUTCH HUB CPL. 85 SX 13

OUTER CLUTCH HUB CPL. 85 SX 13

2

INNER CLUTCH HUB 85 SX 2003

INNER CLUTCH HUB 85 SX 2003

3

PRESSURE CAP 85 SX 2003

PRESSURE CAP 85 SX 2003

4

OUT . CLUTCH HUB LOOSE 85 SX 07

OUT . CLUTCH HUB LOOSE 85 SX 07

5

CLUTCH SPRING 85 SX 2003

CLUTCH SPRING 85 SX 2003

6

SPRING RET AIN. 5,1X10,2X15X2,5

SPRING RET AIN. 5,1X10,2X15X2,5

7

% HH COLLAR SCREW M 5X20 WS=8

% HH COLLAR SCREW M 5X20 WS=8

8

RIVET DIN0661 5X14

RIVET DIN0661 5X14

10

STEEL DISC 85 SX 03

STEEL DISC 85 SX 03

11

LINING DISC 85 SX 2003

LINING DISC 85 SX 2003

15

BUSHING 20X25X20,5

BUSHING 20X25X20,5

16

NEEDLE BEAR K 25X29X10

NEEDLE BEAR K 25X29X10

17

SUPPORT WASHER 18,5X35X1,5 03

SUPPORT WASHER 18,5X35X1,5 03

20

STOP DISC 20X32X2

STOP DISC 20X32X2

26

DAMPING ELEMENT 85 SX 2003

DAMPING ELEMENT 85 SX 2003

28

RET AINING PLATE 85 SX 2003

RET AINING PLATE 85 SX 2003

54

PRESSURE PLATE 85 SX 2003

PRESSURE PLATE 85 SX 2003

58

PUSH ROD 85 SX 2003

PUSH ROD 85 SX 2003

61

OUTPUT CYLINDER CPL.

OUTPUT CYLINDER CPL.

62

PISTON CPL.

PISTON CPL.

65

O-RING 31,47X1,78

O-RING 31,47X1,78

68

BALL D=6MM 85 SX 2003

BALL D=6MM 85 SX 2003

70

HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

71

HH COLLAR SCREW M 6X30 SW=8

HH COLLAR SCREW M 6X30 SW=8

98

AXIAL NEEDLE BEARING 85 SX 03

AXIAL NEEDLE BEARING 85 SX 03

99

CLUTCH KIT 105/85 SX 03-14

CLUTCH KIT 105/85 SX 03-14
