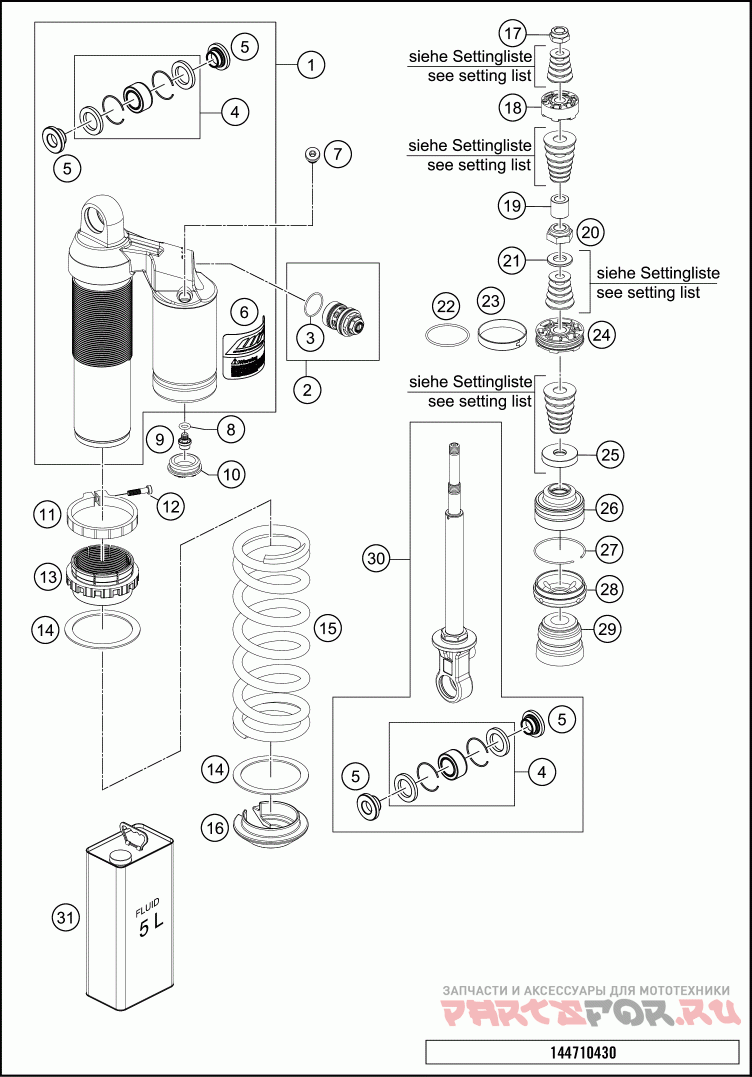

Амортизатор в разборе

Husqvarna 2016 TC 85 CHASSIS

Husqvarna
#oem кодцена
1
46181019S2
MONOSHOCK CASE CPL.
2
50180213S12
DCC-COMPR .DAMP .CONTROL CPL. 09
3
50180218
O-RING 25X1,5 VITON
4
R12012
REP . KIT BEAR./SEAL UP . 07
5
46180007
ADAPTOR BUSH KGW 12X24
6
52000087
STICKER WP MONOSHOCK
7
50180095
BLEED PLUG R 1/8
8
46810893
O-RING NBR 5,28X1,78
9
36120151S
SCREW PLUG M5X6
10
46811208
RUBBER CAP
11
46181014
TENSIONI NG RING D64 H10
12
0912050203
%ALLENHEAD SCREW M5 L=20 STAIN
13
46181013
ADJUSTING NUT D46 PLASTIC
14
50180410
INTERM.RING D=58
15
91010271S
SPRING (59) 215 30 N/MM
15
91010240S
SPRING (59) 215 35 N/MM D=9,25
15
91010161S
SPRING (59) 215 40 N/MM D=9,5
16
46180349
SPRING WASHER H=15 D=28
17
46180356
PISTON ROD NUT M10X1
18
46180744
PISTON D35,4 PDS 2
19
46181025
SANDWIC H BUSH 10X17X17
20
46810474
PISTON ROD NUT
21
46811258
RING 12X24X2,5
22
46810035
O-RING VITON 37,82X1,78
23
46811206
PISTON RING 8X46
24
46810560
PISTON 6+6D7
25
46180337
REBOUND DISC H=4
26
46180669S
ADAPTOR CPL. D=46 H=28 07
27
46810010
CIRCLIP 49X1,5
28
46180338
CAP D=46 H=9,5
29
50180276
BUMP RUBBER WP60 D=18-26
30
46180520S5
MONOSHOCK LOWER PAR T
31
50180751S1
SHOCK ABSORBER FLUID 5 LT
