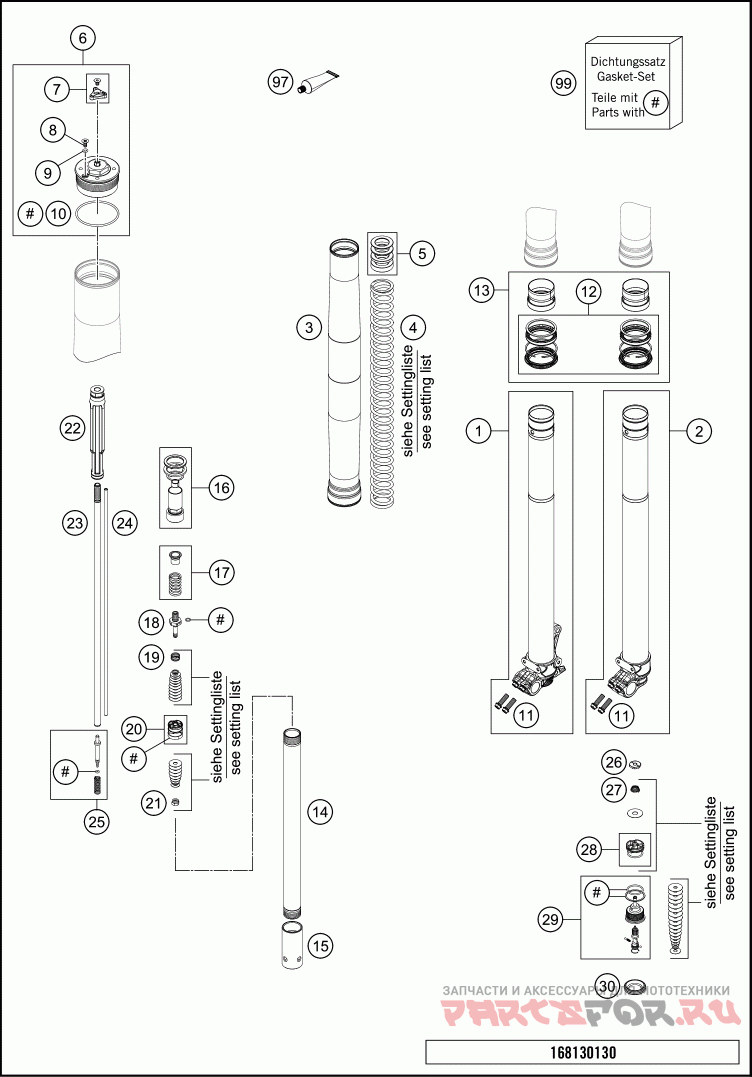

Передняя вилка

Husqvarna 2016 FE 501S CHASSIS

Husqvarna
#oem кодцена
1*
48601326S1
AXLE CLAMP L/S WITH INNER TUBE
2*
48601327S1
AXLE CLAMP R/S WITH INNER TUBE
3
0025080256
HH COLLAR SCREW M8X25 TX40
4
48601050E
SCREW CAP M51X1,5 REB. KPL.
5
48601116E
SCREW CAP M51X1,5 CPL.
6
48600736
OUTER TUBE L577 D54/60MM 2L
7*
R14063
FORK REP . KIT 48MM OFFROAD
8*
R14040
GASKET KIT CPL.
9*
91410100S
SPRING 4,0N/MM SET D=4,9MM
9*
91410101S
SPRING 4,2N/MM SET D=4,9MM
9*
91410102S
SPRING 4,4N/MM SET D=4,9MM
9*
91410103S
SPRING 4,6N/MM SET D=4,9MM
9*
91410104S
SPRING 4,8N/MM SET D=4,9MM
10
R14033
SCREW CAP SMALL PAR T KIT
11
48601035S
SPRING GUIDE CPL.
12*
48601343S
PISTON ROD CPL.
13
48600382
SHUTTLE VALVE SPRING C=0,4
14*
R14056
TAP KIT
15*
48601390S3
ADAPTER D20 COMPR. CPL.
16
R14035
SCREW SLEEVE KIT
18*
48601315S4
PRESSURE TANK CPL.
19*
48601031S1
TUBE L403 + ADAPTER
20*
48601522S
SCREW CAP CPL.
97
T14034
SILICONE GREASE F. DUST STRI
99
R24002
O-RING SET 4CS
