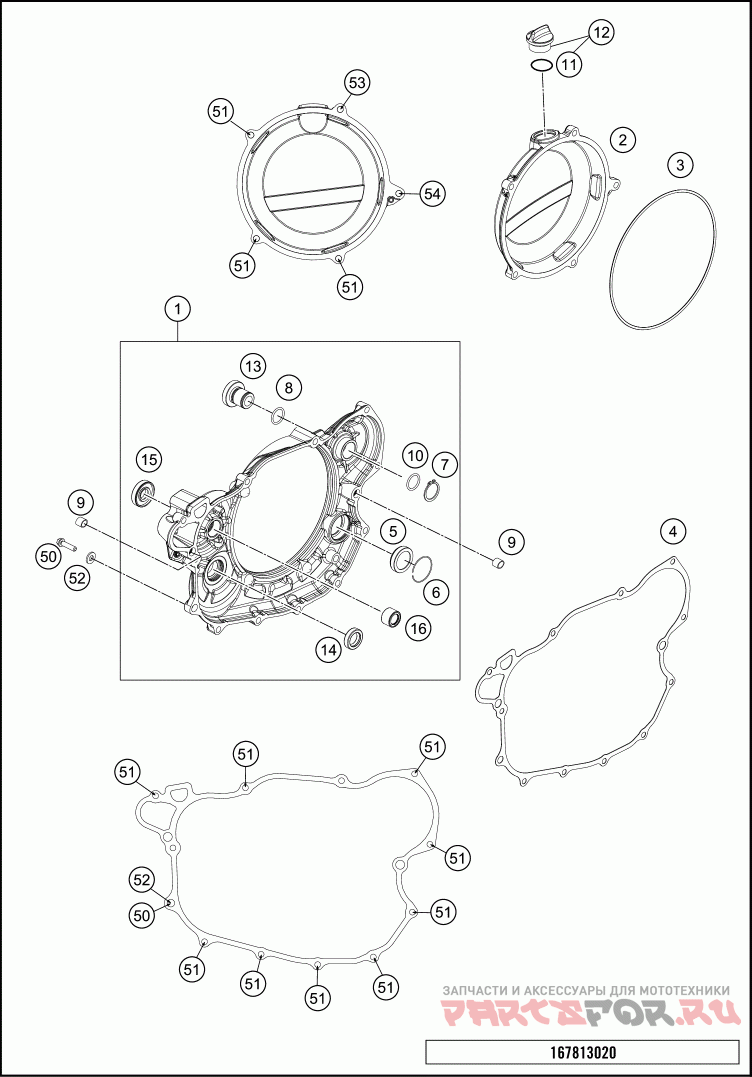

Кожух сцепления

Husqvarna 2016 FE 501 ENGINE

Husqvarna
#oem кодцена
1
78130001244
CLUTCH COVER CPL.
2
78130626000KA
OUTER CLUTCH COVER
3
78130027000
GASKET - CLUTCH OUTER COVER
4
78130025000
CLUTCH COVER GASKET
5
78030095100
OIL LEVEL GLASS VITON
6
61030019050
CIRCLIP OIL LEVEL GLASS 03
7
0471190120
CIRCLIP DIN0471-19X1 ,2
8
0770160021
O-RING 16,00X2,00 VITON
9
49030090100
DOWEL 9,8 X 7 X 10
10*
0770180020
O-RING 18,00X2,00 NBR 70
11
0770191015
O-RING 19,00X3,00 NBR
12
79430020033
OIL FILLER CAP M24x3 WITH O-R
13
83033056100
KICK-ST ARTER PLUG
14
0760142460
SHAFT SEAL RING 14X24X6 B
15
0760123073
SHAFT SEAL RING 12X30X7 PTFE
16
0618121912
NEEDLE BUSH NK1212
50
78030080000
LOCA TING SCREW
51
0025060256
HH COLLAR SCREW M6X25 TX30
52
58030081000
CU-SEAL RING 8 X 14 X 3
53
0025060556
HH COLLAR SCREW M6X55 TX30
54
0025060606
HH COLLAR SCREW M6X60 TX30
