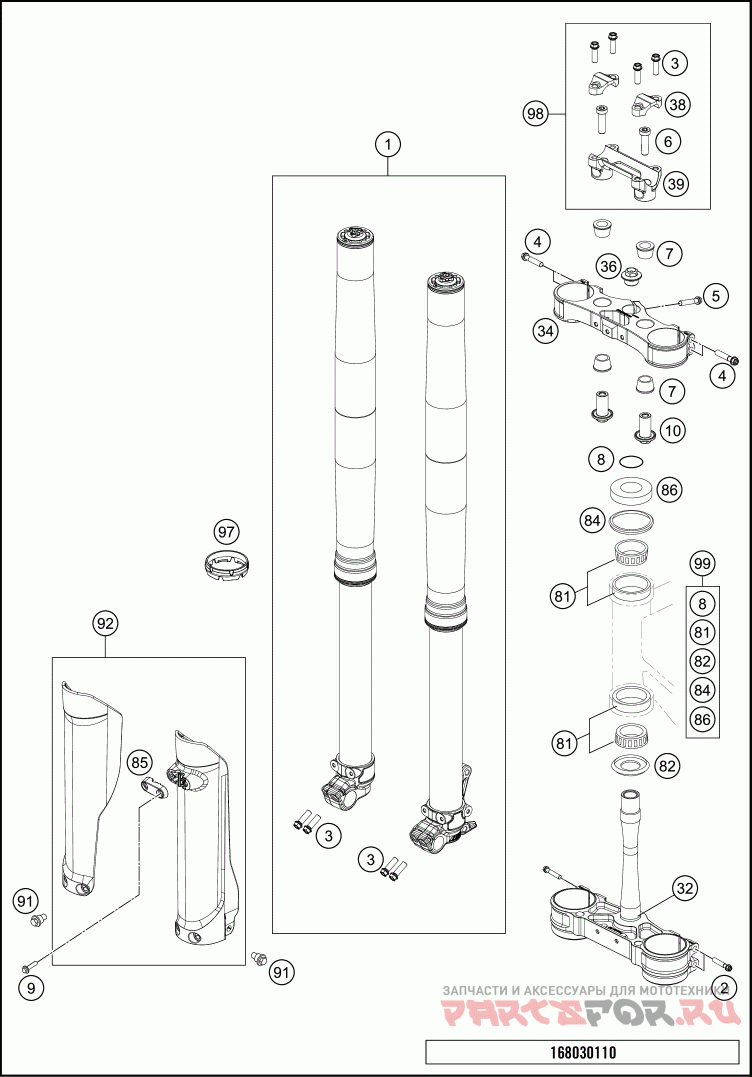

Передняя вилка

Husqvarna 2016 FC 450 CHASSIS

Husqvarna
#oem кодцена
1*
24187P5901
FORK 450 SX-F US 2016
2
0025080506
HH COLLAR SCREW M8X50 TX40
3
0025080256
HH COLLAR SCREW M8X25 TX40
4
0025080406
HH COLLAR SCREW M8X40 TX40
5
0025080256S
HH COLLAR SCREW M8X25 TX40
6
0032100356S
AH-COLLAR SCREW M10X35 ISA45
7*
83001040000
RUBBER BUSH
8
0770025035
O-RING 25X3,55 NBR70 05
9
0017060206
SCREW F. PLASTIC K60X20AL SW6
10*
79001037034
HANDLEB AR SUPPORT LOWER PAR T
32*
7900103212230
BOTT .TRIPLE CLAMP VMT. X=22MM
34*
7900103412230
TOP TRIPLE CLAMP X=22MM 2016
36
70009082000
AXLESCRE W M20X1.5; SW17
38
77201038000
HANDLEB AR CLAMP 28MM
39*
79001139036
HANDLEB AR SUPPORT D28MM-H36MM
81
54201081100
TAPERED ROLLER BEARING CPL. 06
82
77701084000
O-RING SUPPORT W. SEALING LIP
84
54601184000
STEARING HEAD GASKET TOP
85*
2500108500028
CLAMP BRAKE HOSE
86
78101086000
STEERING HEAD COVER
91
59001092050
SPECIAL SCREW M6X12,5 WS=8
97
48600698
FORK PROTECTION RING 08
98
00050000929
HANDLEB AR SUPPORT KIT D28/H36
99
00050000930
STEARING HEAD REP . KIT 06-15
