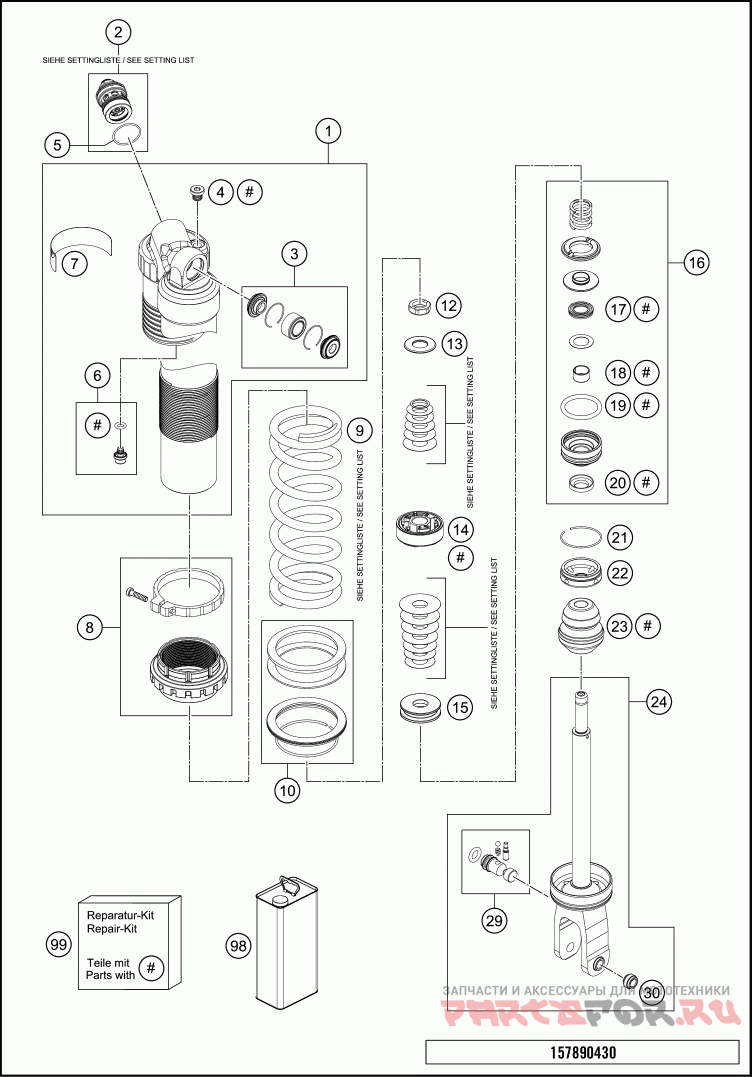

Амортизатор в разборе

Husqvarna 2016 FC 450 CHASSIS

Husqvarna
#oem кодцена
1*
50181040S1
MONOSOCK UPPER PAR T CPL.
2*
50181101S1
DCC-COMPR .DAMP .CONTROL LINK 16
2*
50181101S2
DCC-COMPR .DAMP .CONTROL LINK 16
2*
50181101S3
DCC-COMPR .DAMP .CONTROL LINK 16
3*
R12025
REP .KIT BEAR./SEAL KGW 1525 HD
4
50180095
BLEED PLUG R 1/8
5*
50180218
O-RING 25X1,5 VITON
6*
36120151S
PLUG SCREW M5X6 CPL.
7*
52000128
STICKER WP WARNING
8*
50180991S
SPRING ADJUSTER PLASTIC CPL.
9*
91210124S
SPRING 247 42 N/MM
9*
91210100S
SPRING 247 45 N/MM
9*
91210101S
SPRING 247 48 N/MM
9*
91210102S
SPRING 252 51 N/MM
10*
50180824S
SPRING PLATE SET
11
50180273
CIRCLIP 58,2X2
12*
50181207
PISTON ROD NUT M12X1
13*
50181092
REBOUND DISC 12X34 T2 H0
14*
50181030E
PISTON ID12
15*
50181091
REBOUND DISC 12X43 H8
16
50180603SA
ADAPTER D50 H28 CPL.
17
50180605S
SEAL D18X30X5 08
18
46180119
DU-BUSH 18X20X12
19
50180103
O-RING 41X5
20
50180606
DUST SEAL 1828 08
21
50180126
CIRCLIP 53X1,75
22
50180626
RESERVOIR CAP D=50 H=10 09
23*
50181100
BUMP RUBBER 57X18 H46
24*
50181032S1
MONOSHOCK BOTTOM PAR T CPL.
29*
50181094S
ADJUSTING SCREW M8X0,5 CPL.
30
46811205
ADAPTOR -BUSH M10x1,50, D=15
98
50180751S1
SHOCK ABSORBER FLUID 5 LT
99
R12029
REP . KIT 5018 LINK 2016 US/HQV
