Передняя вилка

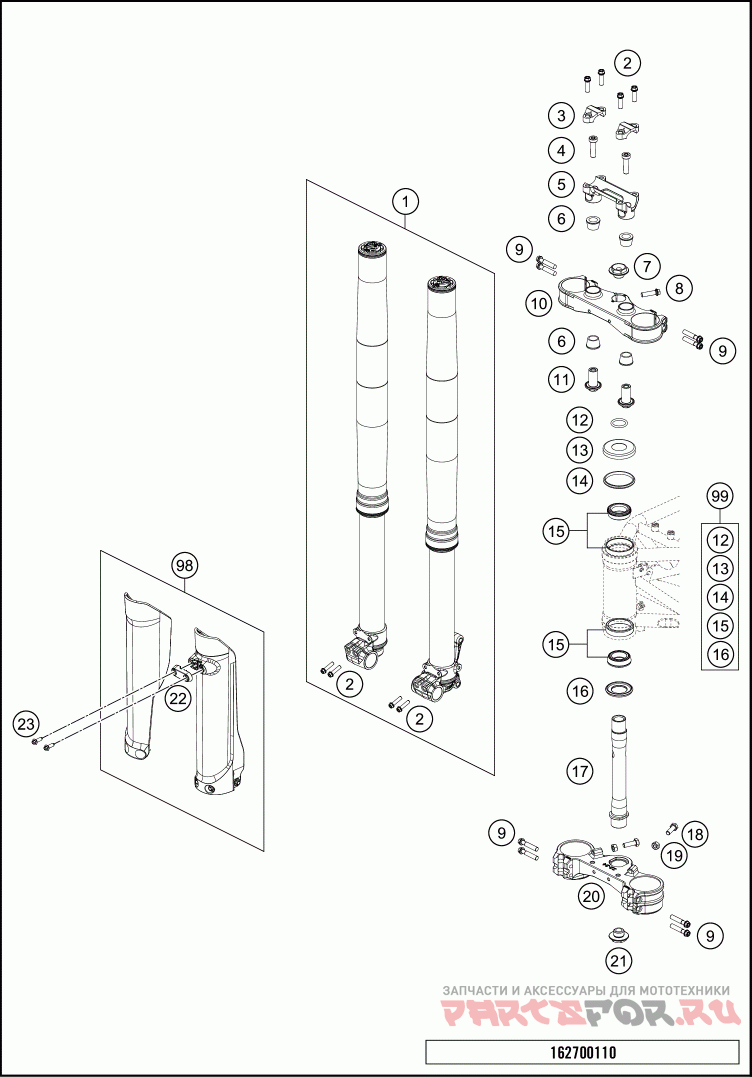

Husqvarna 2016 701 ENDURO CHASSIS

Husqvarna
#oem кодцена
1
24157P1001
FRONT FORK FE 701 2016
2
0025080256
HH COLLAR SCREW M8X25 TX40
3
77201038000
HANDLEB AR CLAMP 28MM
4
0032100356S
AH-COLLAR SCREW M10X35 ISA45
5
79001139036
HANDLEB AR SUPPORT D28MM-H36MM
6
83001040000
RUBBER BUSH
7
54801036000
STEER.HEAD SCREW M20X1,5 WS=27
8
0025080306
HH COLLAR SCREW M8X30 TX40
9
0025080406
HH COLLAR SCREW M8X40 TX40
10
2700103422330
UP . TRIPLE-CLAMP 22-24 OFFSET
11
79001037034
HANDLEB AR SUPPORT LOWER PAR T
12
0770025035
O-RING 25X3,55 NBR70 05
13
78101086000
STEERING HEAD COVER
14
54601184000
STEARING HEAD GASKET TOP
15
54201081100
TAPERED ROLLER BEARING CPL. 06
16
77701084000
O-RING SUPPORT W. SEALING LIP
17
76501033000
FORK TUBE L=237MM 08
18
0933080253
HH SCREW DIN0933-M 8X25
19
0934080003
HEXAGON NUT DIN0934-M 8
20
2700103112330
BOTTOM TRIPLE CLAMP 22-24
21
54801036100
STE.HEAD SCR. M20X1,5 WS=27 SL
22
2500108500028
CLAMP BRAKE HOSE
23
0017060206
SCREW F. PLASTIC K60X20AL SW6
98
2500109400028C
FORK PROTECTION SET 701 END.16 WITH DECAL
99
00050000930
STEARING HEAD REP . KIT 06-15
