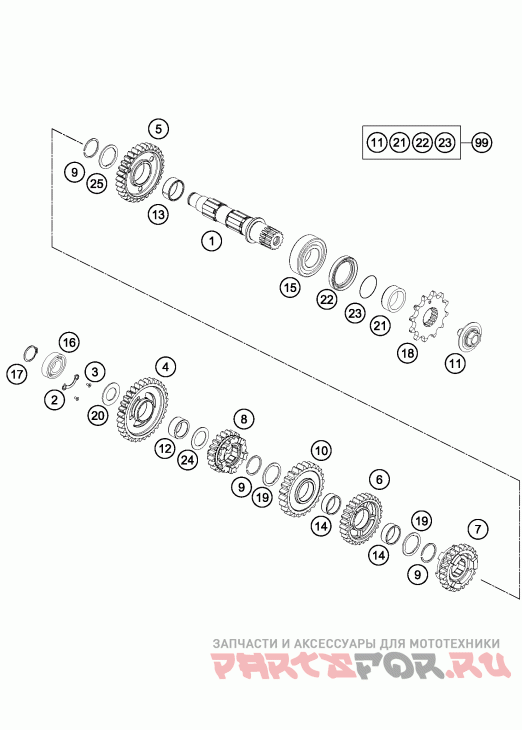

Трансмиссия 2-контрпривод

Husqvarna FE 250 ENGINE

Husqvarna
#oem кодцена
1
77733110000
Промежуточный вал
2
78033132000
Tab Washer Bearing Count.shaft
3*
0019050121S
Int. Torx Flat Head M5x12 T25
4
77733011000
Idler Gear 1st G. T=32
5
77733112000
Idler Gear 2nd G. T=30
6
77733114100
Idler Gear 4.g. Z=28
7
77733115100
Sliding Gear 5.g., Z=23
8*
72033016000
Sliding Gear 6th Gear, 20t
9
0417024000
Circlip Ws24
10
77733113100
Idler Gear 3.g. Z=24
11
59033034044
Screw 10.9+spring Washer
12
0405202612
Needle Bearing K 20x26x12
13
0405242812
Neddle Bear. K24x28x11, 9 Div.
14
0405222611
Needle Bear.k 22x26x10 Divided
15
49030023000
Cyl.roll Bearing Nj205
16
0625062035
Ball Bearing 6203 Jr2 C3
17
0471170015
Circlip Din 0471-17x1, 5
18
50033029013
Front Sprocket 13-t
18
50033029014
Front Sprocket 14-t
19
77733043000
Stop Disc 23, 4x31x1, 5
20
77233020000
Stop Disk 17, 2x30x1, 3
21
54633014100
Spacer Bushing 12mm
22
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
23
0770020220
O-ring 25, 12x1, 78 Nbr70
24
54833080000
Stop Disc 20, 2x30x1
25
77733044000
Stop Disc 24x32x1, 5
99
00050000941
Counter Shaft Rep.kit 4 Stroke
