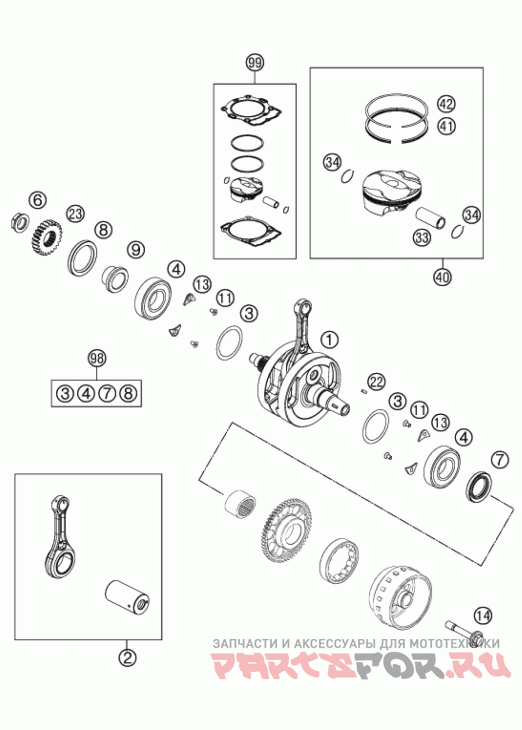

Коленвал и поршень

Husqvarna FE 250 ENGINE

Husqvarna
#oem кодцена
1
77730118000
Crankshaft Cpl.
2
77730015144
Connecting Rod Repair Set
3
0988324510
Thrust Washer 988st 32x0, 1
3
0988324515
Thrust Washer 988st 32x0, 15
3
0988324530
Thrust Washer 988st 32x0, 30
4
77330082200
Bearing Nj 206 Ecp/hn3c4hva624
6
77230029000
Nut Primary Wheel
7
0760304772
Sh.seal Ring 30x47x7 Bsl Viton
8
0760405560
Shaft Seal Ring A40x55x6 Viton
9
77232022000
Spacer Bushing Primary Gear
11
0019050106S
Int. Torx Flat Head M5x10 10.9
13
75030085000
Retaining Plate F. Cs Bearing
14
77339010100
Flywheel Screw
22
0888030037
Woodruff Key Din6888-3x3, 7
23
77232023024
Primary Gear 24t.
33
77730033200
Палец поршневой
34
77730074000
Circlip 16x1.4 Mm
40
77730007100 I
Piston I Cpl. 250
40
77730007100 II
Piston Ii Cpl. 250
41
77730032000
Scraper Ring 250
42
77730030000
Compressionring 250
98
00050002311
Crankshaft Rep. Kit Sx-f 13-15
99
00050000222
Piston Kit Gr.i 250 Sx-f13-14
99
00050000223
Piston Kit Gr.ii 250 Sx-f 13
