  5. FC 250 CHASSIS

Электрика

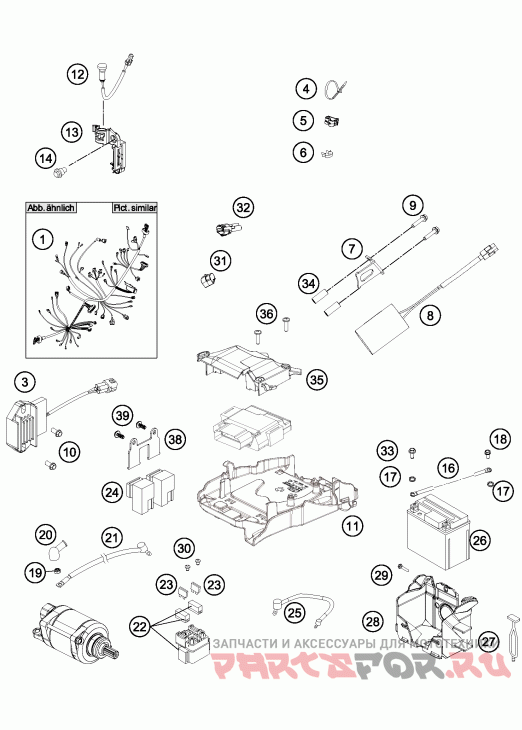

Husqvarna FC 250 CHASSIS

Husqvarna
#oem кодцена
1
77711075200
Wiring Harness Sx-f 2014
3
77211034000
Voltage Regulator 09
4
44011076140
Cable Tie 140/2, 5mm Black
4
44011076200
Cable Tie 200/3, 6mm Black
4
44011076305
Cable Tie 300/4, 8mm Black
5
83013026000
Cable Guide
6
57013072100
Wiring Holder 16mm
7
77711036000
Retaining Plate Condensator
8
77711035000
Condensator
9
0025050306
Hh Collar Screw M5x30 Tx30
10
0025060206
Hh Collar Screw M6x20 Tx30
11
77711094000
Electric Box
12
81214083000
Indicator Light Led Yellow Fi
13
77214098000
Holder Indicator Light Sx
14
59001092050
Special Screw M6x12, 5 Ws=8
16
58411097100
Ground Cable D=6mm L=140mm '97
17
58411098100
Contact Washer M6 Vsv-k6
18
0009050106
Ejot Spiral Screw Sf M5x10-k
19
0985060003
Self Lock. Nut Din0985-m 6
20
77240099000
Protection Cap F. Starter Eng.
21
81311059000
Starter Cable
22
76211058000
Starter Relay 07
23
58011109110
Fuse 10 A 2000
24
61111057000
Relay Cm1a-r-12v-h80 07
25
81311059050
Wiring Harness Battery
26
77311053000
Battery 12v 3ah Ytx4l-bs
27
50303018000
Rubber L=145mm
28
77211055000
Battery Box
29
0017060205
Screw For Plastic K60x20 Sw6
30
0902060083
Ah Oval Screw Iso 7380 M 6x8
31
77211010050
Dummy Plug Mapselectswitch
32
69011040000
End Plug Can-bus 08
33
0025050126
Hh Collar Screw M5x12 Tx30
34
77711036050
Bushing Conensator Bracket
35
77711094050
Ecu Splash Protect.
38
81311037000
Bracket Powerrelais
39
0081050121
Screw For Plastic K50x12 T20
