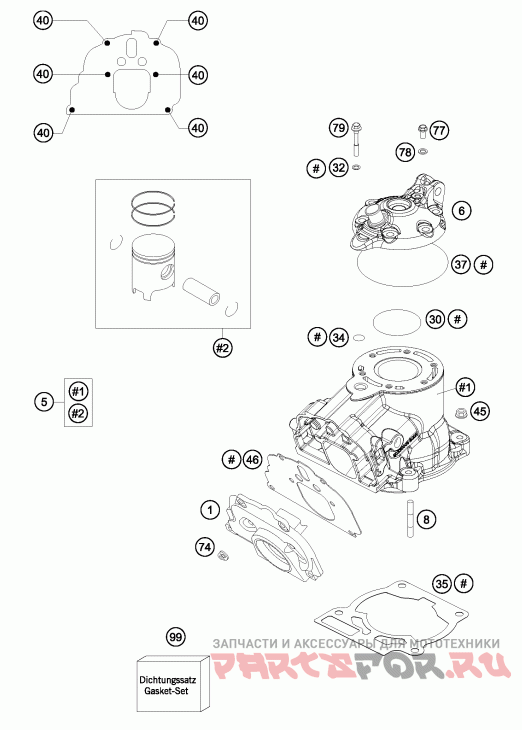

Цилиндр,головка цилиндров

Husqvarna TC 125 ENGINE

Husqvarna
#oem кодцена
1
50337001200
Intermediate Flange 125 06
5
50330038600
Cylinder+piston Cpl.
6
50330006600
Cylinderhead 125 Sx/exc 2011
8
0835080276
Stud Din0835-m 8x27
30
0770062020
O-ring 62, 00x2, 00 Viton
32
0603070121
Cu-seal Ring Din7603- 7, 3x12x1
34
0770012021
O-ring 12x2 Viton Green
35
50330035020
Cylinder Base Gasket 0, 20mm
35
50330035025
Cylinder Base Gasket 0, 25mm
35
50330035040
Cylinder Base Gasket 0, 40mm
35
50330035050
Cylinder Base Gasket 0, 50mm
35
50330035075
Cylinder Base Gasket 0, 75mm
37
0770086020
O-ring 86x2 Viton75shore Green
40
0014050203
Hh Collar Screw M 5x20 Ws=6
45
50330045000
Hh Collar Nut M 8 Ws=12
46
50337046300
Intermediate Flange Gasket
74
51005074000
Retaining Plate
77
0025060106
Hh Collar Screw M6x10 Tx30
78
0603061001
Cu-seal Ring Din7603-6x10x1
79
50330079000
Cyl. Head Bolt M 7x30 Ws=10
99
50330097100
Cylinder Gasket Set 125/200 07
