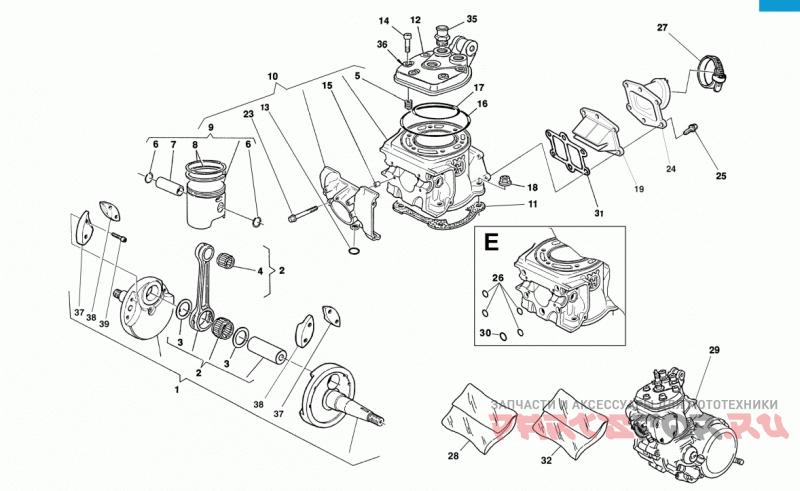

Cylinder head, cylinder, piston, crankshaft

Husqvarna WR-WR USA 250-WR-WR USA 300

Husqvarna
#oem кодцена
1
800089024
Коленчатый вал
2
8A0050632
Шатун
3
800050629
Washer 41x24.05
4
800017826
Bearing, Needle 18x22x22
5
8A0030729
Insertedthread Helicoil
5
8C0030729
Insertedthread Helicoil
6
800087765
Clip Piston Pin
7
800086817
Палец поршня
8
54630232000
Square Ring 66, 4mm 250 2000
8
8000H0671
Piston Ring 72 Mm
9
800086806/1
Piston Assy A-b
9
800086806/2
Piston Assy C-d
9
800086806/3
Piston Assy E-f
9
8000H0670/1
Piston Assy A 71.935-71.945
9
8000H0670/2
Piston Assy B 71.945-71.955
9
8000H0670/3
Piston Assy C 71.955-71.965
10
800099895
Cylinder Assy
10
8000H0698
Cylinder Assy
11
800086902
Gasket, Cylinder Base 0.3 Mm
11
8A0086902
Gasket, Cylinder 0.4 Mm
11
8B0086902
Gasket, Cylinder Base 0.5 Mm
11
8C0086902
Gasket, Cylinder Base 0.8 Mm
12
800086823
Головка цилиндров
12
8000H0673
Головка цилиндров
13
8A0042700
O-ring 23.52x1.78
14
ZK0069056
Винт
15
161795501
Bush 8x6.4x6
16
8A0063593
O-ring Viton Gf 2.62x112.6
17
8A0044117
O-ring Viton Gf 1.78x75.7
18
Z00038624
Nut Flange
19
8000H0848
Read Valve Comp
23
ZE0067545
Винт
23
ZA0067545
Винт
24
8000H0586
Коллектор
25
Z00062729
Винт
26
8A0023109
O-ring 12.42x1.78
27
8G0099475
Clamp Nemo 30/60 Mm
28
800094853
Gasket Set, Engine
29
8000H3941
Engine Assy Wr 300/11
29
8000H3939
Engine Assembly
30
800036380
O-ring 17.17x1.78
31
800089954
Gasket Valve Seat
32
800099893
Oil Seal Set, Engine
35
800063885
Соединитель
36
8B0064988
Washer, Copper
37
800089025
Weight Lh
38
800089026
Weight Rh
39
60N102506
Screw Tcei M6x1x14
