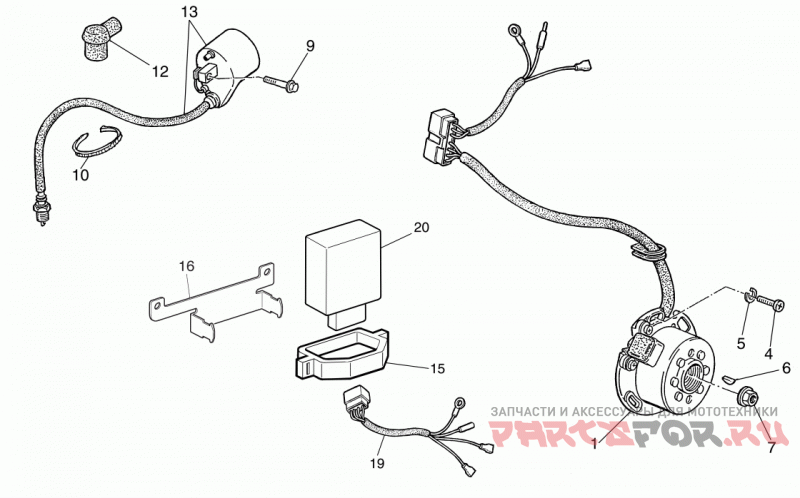

Electric part (cr 125-cr u.s.a. 150)
Husqvarna WR 125-CR 125
| # | oem код | название | цена |
|---|---|---|---|
1 | 8000H0289 Flywheel Magneto | Flywheel Magneto | |
4 | Z00062728 Screw Tef M6x1-ch8-l20 | Screw Tef M6x1-ch8-l20 | |
5 | 62N115504 Washer 6.4x12x1 | Washer 6.4x12x1 | |
6 | 65N021002 Сегментная шпонка | Сегментная шпонка | |
7 | 800042023 Nut Flange M12x1.25 | Nut Flange M12x1.25 | |
9 | 800062727 Screw Te M6x1x16 Ch8 | Screw Te M6x1x16 Ch8 | |
10 | 800056444 Clamp 188 Mm | Clamp 188 Mm | |
12 | 800075270 Cap, Spark Plug Noise Supresso | Cap, Spark Plug Noise Supresso | |
13 | 800072887 Катушка зажигания | Катушка зажигания | |
15 | 8000H4045 Pipe Radiator | Pipe Radiator | |
16 | 8000H5887 Cdi Unit Support | Cdi Unit Support | |
19 | 8000H0290 Wiring Harness | Wiring Harness | |
20 | 8000A9442 Cdi Unit Assy | Cdi Unit Assy |
