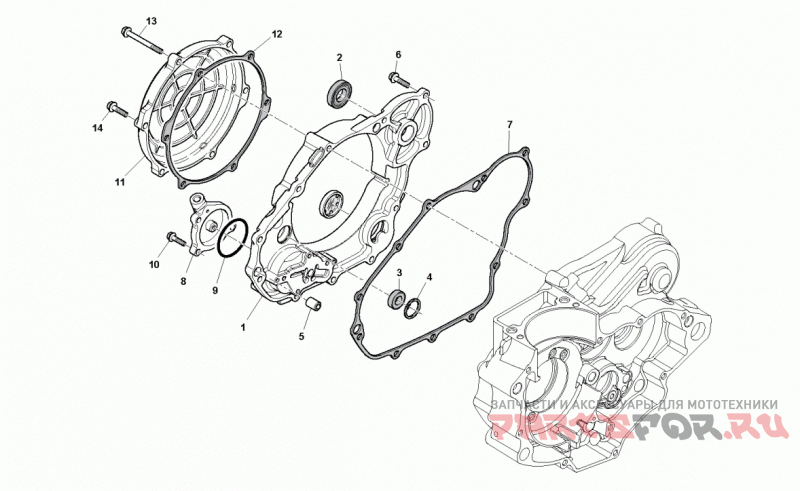

R.h. half crankcase covers
Husqvarna TE-TXCi-TC 250-TE 310
| # | oem код | название | цена |
|---|---|---|---|
1 | 80A0A6994 Left Crankcase Cover | Left Crankcase Cover | |
2 | 8000A6976 Seal Ring D30-d18-sp6 | Seal Ring D30-d18-sp6 | |
3 | 8000A6996 Сальник | Сальник | |
4 | 66N021257 Pin Retainer Ring | Pin Retainer Ring | |
5 | 8000A6966 Dowel Pin D10-sp12 | Dowel Pin D10-sp12 | |
6 | Z00062728 Screw Tef M6x1-ch8-l20 | Screw Tef M6x1-ch8-l20 | |
7 | 8000A6997 Cover Rh Gasket | Cover Rh Gasket | |
8 | 80A0A7000 Case, Oil Filter | Case, Oil Filter | |
9 | 8000A7001 Уплотнительное кольцо | Уплотнительное кольцо | |
10 | ZA0066525 Винт | Винт | |
11 | 80A0A6998 Clutch Cover | Clutch Cover | |
12 | 8000A6999 Прокладка | Прокладка | |
13 | Z00067545 Винт | Винт | |
14 | ZPA067545 Screw Tef M6x1- Ch8-l22 | Screw Tef M6x1- Ch8-l22 |
