Головка цилиндра для мотоциклов Husqvarna CR-SM 50 (2011)

Москва и регионы России

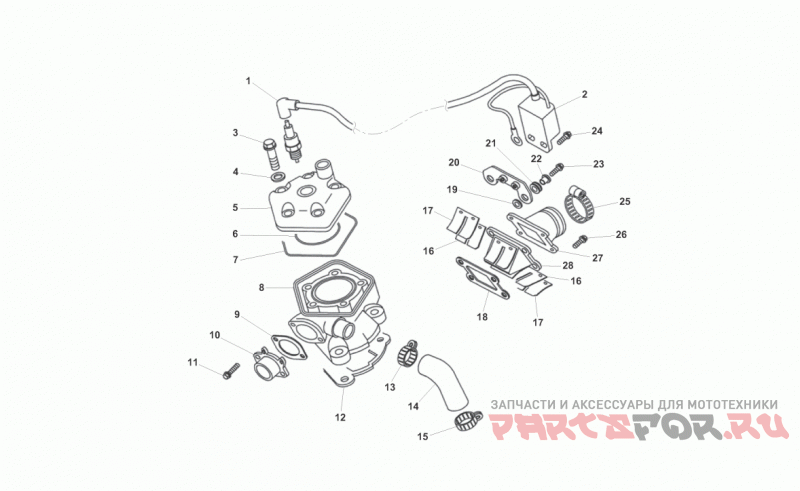

Головка цилиндра

Husqvarna CR-SM 50

Головка цилиндра

#

oem код

название

цена

1

% Spark Plug Protector Lboemh

% Spark Plug Protector Lboemh

2

Ignition Coil 50ccm Lc 2001

Ignition Coil 50ccm Lc 2001

3

Cylinderheadscr.hh-m7x33 2001

Cylinderheadscr.hh-m7x33 2001

4

Cu-seal Ring Din7603- 7, 3x12x1

Cu-seal Ring Din7603- 7, 3x12x1

5

Cylinder Head 50 Lc 2002

Cylinder Head 50 Lc 2002

6

% Seal Vyton 51, 5x1, 78

% Seal Vyton 51, 5x1, 78

7

% Seal 94.97x1.78

% Seal 94.97x1.78

8

Цилиндр

Цилиндр

9

% Gasket

% Gasket

10

Exhaust Flange 50 Lc 2002

Exhaust Flange 50 Lc 2002

11

Screw 6x16

Screw 6x16

12

% Cylinder-cranckase Gasket0, 4

% Cylinder-cranckase Gasket0, 4

13

% Clamp 14/24

% Clamp 14/24

14

Pre-form Hose Cyl.-w.cover

Pre-form Hose Cyl.-w.cover

15

Hose Clamp Norma 14/24

Hose Clamp Norma 14/24

16

Membrane Loose 60/65 Ccm

Membrane Loose 60/65 Ccm

17

Valve's Plate

Valve's Plate

18

% Valve's Gasket

% Valve's Gasket

19

Washer 6x18

Washer 6x18

20

% H.t. Coil Bracket

% H.t. Coil Bracket

21

Rubber Sleeve D=8mm Open

Rubber Sleeve D=8mm Open

22

Collar Bushing 6, 3x8x7, 5

Collar Bushing 6, 3x8x7, 5

23

Hh Collar Screw M 6x30 Sw=8

Hh Collar Screw M 6x30 Sw=8

24

Screw 6x16

Screw 6x16

25

Зажим

Зажим

26

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

27

Inlet Manifold 50ccm Lc 2001

Inlet Manifold 50ccm Lc 2001

28

Membrane Housing Cpl.65sx 2001

Membrane Housing Cpl.65sx 2001
