Frame, foot rests для мотоциклов Husqvarna TE-SM 610ie (2008)

Москва и регионы России

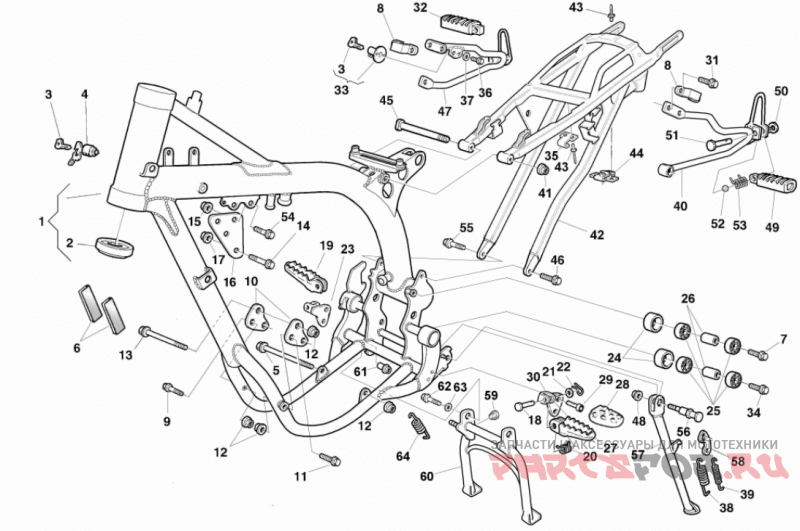

Frame, foot rests

Husqvarna TE-SM 610ie

Frame, foot rests

#

oem код

название

цена

1

Рама

Рама

2

Conical Rollers Bearing 29-48-

Conical Rollers Bearing 29-48-

3

Key, Brank

Key, Brank

4

Lock, Steering

Lock, Steering

5

Axle, Engine Fixing M8x1.25x13

Axle, Engine Fixing M8x1.25x13

6

Grommet Adhesive

Grommet Adhesive

7

Screw Tef M8x1.25x30 Ch12

Screw Tef M8x1.25x30 Ch12

8

Болт

Болт

9

Винт

Винт

10

Bracket-engine, Front

Bracket-engine, Front

11

Винт

Винт

12

Self Locking Nut

Self Locking Nut

13

Винт

Винт

14

Screw Tef M8x1.25x45 Ch12

Screw Tef M8x1.25x45 Ch12

15

Self Locking Nut M6x1 Ch10

Self Locking Nut M6x1 Ch10

16

Plate, Engine Mount

Plate, Engine Mount

17

Nut M8x1.25

Nut M8x1.25

18

Палец

Палец

19

Footrest Assy, Front Rh

Footrest Assy, Front Rh

20

Footrest Spring L/s &r/s

Footrest Spring L/s &r/s

21

Washer 16x10x1

Washer 16x10x1

22

Штифт

Штифт

23

Foot Rest Support (couple)

Foot Rest Support (couple)

24

Roller, Chain Guide

Roller, Chain Guide

25

Bearing, Radial Ball 608 2rs

Bearing, Radial Ball 608 2rs

26

Проставка

Проставка

27

Footrest Assy, Front Lh

Footrest Assy, Front Lh

28

Rubber Cover

Rubber Cover

29

Screw Tef M8x1.25x25 Ch12

Screw Tef M8x1.25x25 Ch12

30

Foot Rest Support (couple)

Foot Rest Support (couple)

31

Винт

Винт

32

Footrest Assy, Pillion Rh

Footrest Assy, Pillion Rh

33

Lock-assy, Seat

Lock-assy, Seat

34

Screw Tef M8x1.25x30 Ch12

Screw Tef M8x1.25x30 Ch12

35

Пластина

Пластина

36

Screw Tef M6x1-ch8-l10

Screw Tef M6x1-ch8-l10

37

Washer 11.4x6.4x1.6

Washer 11.4x6.4x1.6

38

Stand Outer Spring

Stand Outer Spring

39

Spring, Side Stand Inner

Spring, Side Stand Inner

40

Foot Rest Support Assy

Foot Rest Support Assy

41

Self Locking Nut

Self Locking Nut

42

Задняя рама

Задняя рама

43

Rivet 3.3x14

Rivet 3.3x14

44

Крепеж

Крепеж

45

Screw M8x1.25x140 Mm

Screw M8x1.25x140 Mm

46

% Screw Tcei M8x1, 25-l55

% Screw Tcei M8x1, 25-l55

47

Bracket, Rear Footrest Rh

Bracket, Rear Footrest Rh

48

Nut M8x1.25

Nut M8x1.25

49

Footrest, Pillion Lh

Footrest, Pillion Lh

50

E Ring 6mm Din6799

E Ring 6mm Din6799

51

Pin, Footrest

Pin, Footrest

52

% Ball 1/4

% Ball 1/4

53

Пружина

Пружина

54

Screw Tef M6x1-ch8-l20

Screw Tef M6x1-ch8-l20

55

Screw Tef M8x1.25x45 Ch12

Screw Tef M8x1.25x45 Ch12

56

Screw Side Stand Pivot

Screw Side Stand Pivot

57

Подставка,боковая

Подставка,боковая

57

Подставка,боковая

Подставка,боковая

58

Spring Retainer With Slot

Spring Retainer With Slot

59

Rubber Pad

Rubber Pad

60

Stand Assy, Center

Stand Assy, Center

61

Втулка

Втулка

62

Screw Ttei M6x1.00x15

Screw Ttei M6x1.00x15

63

Washer 20x6.4x2.5

Washer 20x6.4x2.5

64

Пружина

Пружина
