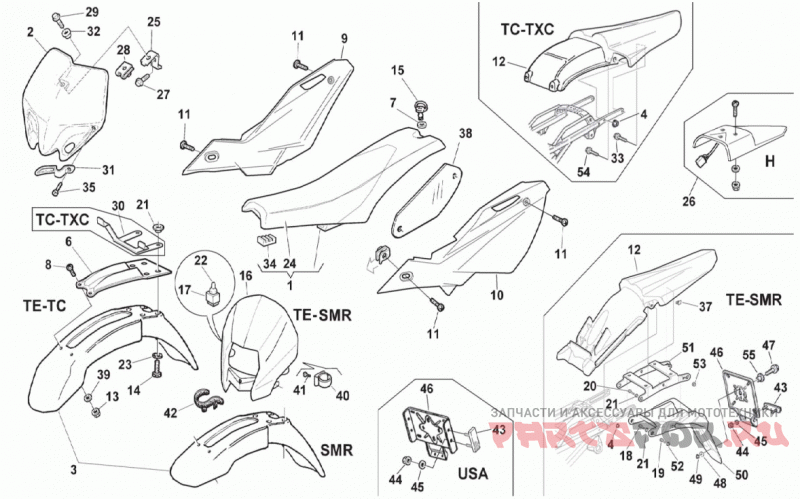

Panel, fenders, seat, plate holder

Husqvarna SMR 450-510-TC-TXC 250-450-510-TE 250-450-510

Husqvarna
#oem кодцена
1
8000B0170
Seat Assy
2
80A0A4216
Front Number Plate
3
80B0B0159
Front Fender
3
80B0B0344
Front Fender
4
800061313
Nutm6x1
6
8AA0A4198
Fender Holder
7
800069149
Washer 17x9x1
8
80A065535
Screw Tcei M5x0.8x14
9
80B0B0164
Cover Frame Rh
10
80B0B0163
Cover Frame Lh
11
8B00A8421
Винт M5x16
12
80B0B0162
Fender. Rear
13
800061355
Nut M5x0.8 Ch8
14
Z00062728
Screw Tef M6x1-ch8-l20
14
Z00062729
Винт
15
8540206
Kit Perno Attacco Sella
16
80A0A4206
Cowling Assy
17
800093221
Lights Switch
18
Z00062728
Screw Tef M6x1-ch8-l20
19
800062727
Screw Te M6x1x16 Ch8
20
Z00062729
Винт
21
8C0069429
Втулка
22
800071755
Крышка
23
Z00048814
Шайба
24
8000B0171
Cover Seat
25
8000A4609
Пластина
26
8000B1641
Plate Number Support
27
8E0067997
Screw Tef M5x0.8x10
28
U00046893
Clip Nut M6x1
29
800062726
Screw Tef M6x1.00x14 Ch8
30
8000A6644
Bracket, Cowling
31
80A0A4610
Зажим торм.шланга
32
Z00069429
Втулка
33
8000A8423
Bolt, Flange M6x8
34
86610191A
Cushion Rubber
35
Z00062728
Screw Tef M6x1-ch8-l20
37
800072494
Направляющая троса
38
8000B0167
Накладка
39
62N115548
Washer 15x5.3x1
40
8000A0864
Guide, Front Brake Hose
41
8A0037283
Screw Self-tapping Ab 3.5x9.5
42
800088602
Опора
43
800073834
Reflex Reflector
44
800040717
Nut Flange M4x0.7
45
62N115547
Washer 12x4.3x0.8
46
800094038
Bracket License
46
800094595
Plate Holder Number
47
ZA0067997
Винт
48
62N115548
Washer 15x5.3x1
49
Z00056443
Self Locking Nut
50
8000A7860
Rear Stay Comp.
51
8A00A5377
Bracket, Luggage Carrier
52
8000H3017
Bush D14xd8xd6, 25x4
53
800044240
Self Locking Nut M6x1 Ch10
54
8B00A8423
Bolt Flange M6x16
55
800069282
Bush 14x7x5.25
