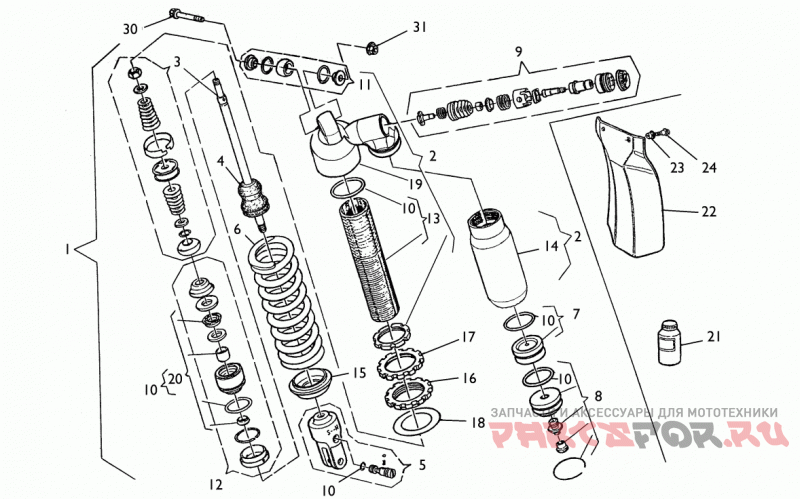

Rear suspension (te 250-450-510-smr 400-450-510)

Husqvarna TC-TE 250-450-510-SMR 400-450-510

Husqvarna
#oem кодцена
1
8000A4409
Rear Shock-absorber
1
8000A4410
Rear Shock-absorber
1
8000A4413
Rear Shock-absorber
2
8000A5065
Damper Case Assy
2
8000A3644
Damper Case Assy
3
8000A5067
Rod, Shockabsorber
3
8000A5068
Rod, Shockabsorber
3
8000A5070
Rod, Shockabsorber
4
800091238
Подушка
5
8000A1507
Fork Assy
5
800098489
Fork Assy
6
800098569
Spring, Shock Absorber K=5.2 K
6
800098504
Spring, Shock Absorber K=5.4 K
6
800098520
Spring, Shock Absorber K=6.4 K
7
8000A5071
Диафрагма
8
800098491
Tank
9
800098492
Adjuster Set
10
8000A5072
Shock/absorber Overhaul Kit
11
800089089
Ball Joint Assy
12
8000A3648
Guide Rod Assy
13
8000A5074
Damper, Sub Assy
13
8000A3649
Damper, Sub Assy
14
8000B1920
Reservoir Shockabsorber
15
800098496
Крышка крыльчатки
16
800098497
Ring Nut
17
800098498
Ring Nut
18
800098499
Шайба
19
800098503
Bracket, Tank
20
8000A5364
Overhaul Set, Rear Shock Absor
21
800080260
Fork Oil
22
80A069551
Cover, Shock Absorber
23
Z00069429
Втулка
24
800062726
Screw Tef M6x1.00x14 Ch8
30
8A0062797
Screw Te M10x1.25 Ch14
31
800042022
% Nut M10x1.25
