Rear suspension linkage для мотоциклов Husqvarna TC-TE-TE U.S.A. 250-450-510, SMR 400, SMR-SMR U.S.A. 450-510 (2005)

Москва и регионы России

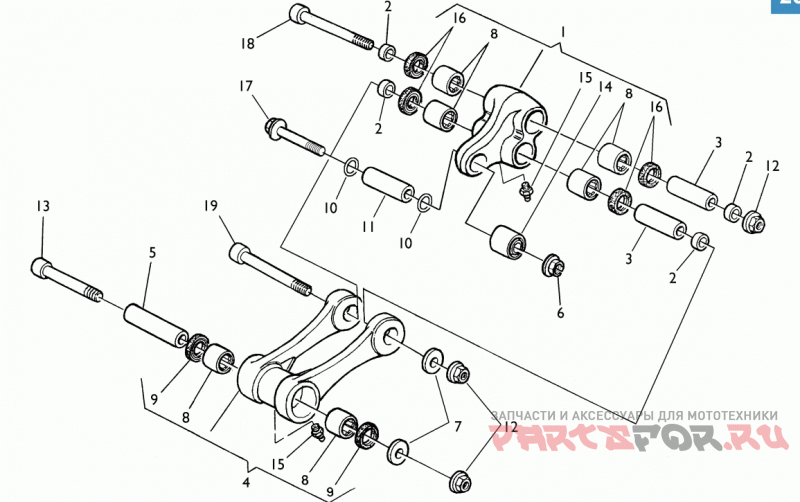

Rear suspension linkage

Husqvarna TC-TE-TE U.S.A. 250-450-510, SMR 400, SMR-SMR U.S.A. 450-510

Rear suspension linkage

#

oem код

название

цена

1

Swingarm, Cushion Relay

Swingarm, Cushion Relay

2

Проставка

Проставка

3

Wrist Pin 22x15x50.4

Wrist Pin 22x15x50.4

4

Rod, Rear Cushion Lever

Rod, Rear Cushion Lever

5

Wrist Pin

Wrist Pin

6

% Nut M10x1.25

% Nut M10x1.25

7

Шайба

Шайба

8

Bearing, Needle 28x 22x20

Bearing, Needle 28x 22x20

9

Oil Seal 28x22x4

Oil Seal 28x22x4

10

Уплотнительное кольцо

Уплотнительное кольцо

11

Wrist Pin 20x10x25.2

Wrist Pin 20x10x25.2

12

Nut Flange M12x1.25

Nut Flange M12x1.25

13

Screw M12x121

Screw M12x121

14

Втулка

Втулка

15

Nipple, Grease M6x1

Nipple, Grease M6x1

16

Oil Seal 34x26x4

Oil Seal 34x26x4

17

Винт

Винт

18

Axle M12x1.25x103 Mm

Axle M12x1.25x103 Mm

19

Screw, Special M12x1.25

Screw, Special M12x1.25
