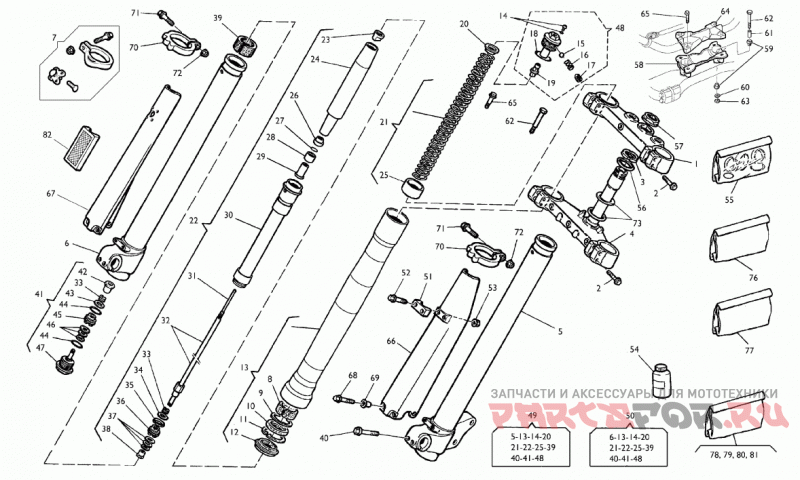

Front fork assembly

Husqvarna TC-TE-TE U.S.A. 250-450-510, SMR 400, SMR-SMR U.S.A. 450-510

Husqvarna
#oem кодцена
1
8A0096811
Head, Steering Stem
1
800096811
Head, Steering Stem
1
800095703
Head, Steering Stem
2
800062796
% Screw Tef M8x1.25x40 Ch12
3
800083395
Ring Nut, Stering Stem
3
8A0087717
Гайка
4
800096897
Under Bracket Assy
4
800096813
Under Bracket Assy
4
800095702
Under Bracket Assy
5
800098787
Fork Inner Tube Left
5
800096643
Fork Inner Tube, Left
5
8A0096643
Fork Inner Tube Left
6
800098786
Fork Inner Tube Right
7
8000A3191
Kit Starting Hook
13
800091474
Fork Outer Tube Assy
19
800091479
% Adjuster Set
20
800077373
Крышка крыльчатки
21
800091610
Fork Spring K=4.5 N/mm
21
800098789
Fork Spring K=4.8 N/mm
21
800098803
Fork Spring K=5.0 N/mm
22
800098552
Поршень
22
800098792
Plunger Assy
22
800096645
Plunger Assy
40
Z00062729
Винт
41
800098781
Bottom Valve Assy
41
800095260
Valve Assy, Base
41
800096647
Bottom Valve Assy
48
800091480
Крышка передней вилки
49
8A0097015
Fork Leg Assy, Left
49
800096839
Lh Front Cushion Ass'y
49
800095699
Fork Leg Assy, Left
49
8A0095699
Fork Leg Assy, Left
50
8A0097016
Fork Leg Assy, Right
50
800096840
Right Front Fork Assy
50
800095698
Fork Leg Assy, Right
50
8A0095698
Fork Leg Assy, Right
51
8000A0633
Пластина
51
80A0A0633
Пластина
52
ZA0067997
Винт
53
800061355
Nut M5x0.8 Ch8
54
800080260
Fork Oil
55
800091519
Front Fork Overhaul Set
56
8A0065503
Washer 34.5x26
56
800087736
Washer 40.5x29.5x2
57
800069315
Nut, Steering Stem M24x1 Ch30
57
8A0069315
Nut, Steering Stem M26x1 Ch30
58
800098237
Holder Handle Lower
59
800060233
Подушка
60
800060234
Washer 28x22x10.5x2.5
61
8000H3016
Проставка
62
60ND01219
Screw Te10x1, 5 - L65
63
800061314
% Self Locking Nut M10x1.5
64
800098118
Держатель руля верхний
65
8C0069056
Screw Tef M8x1.25x30 Ch12
66
80A095696
Guard Fork Tube, Lh
66
800095696
Guard Fork Tube, Lh
67
80G069338
Guard Fork Tube, Rh
67
80C069338
Guard Fork Tube, Rh
68
Z00067997
Винт
69
800069282
Bush 14x7x5.25
70
800093283
Зажим
71
8B0066525
Screw Tef M5x1x30 Ch8
72
Z00056443
Self Locking Nut
73
800087745
Прокладка
76
800097750
Bushing Slide Overhaul Set
77
800097749
Front Fork Seal Overhaul Set
78
800098782
Reed Set 0.1 Mm
79
800098783
Reed Set 0.2 Mm
80
800098784
Reed Set 0.3 Mm
81
800098785
Reed Set 0.4 Mm
82
800074842
Reflex Reflector, Side
