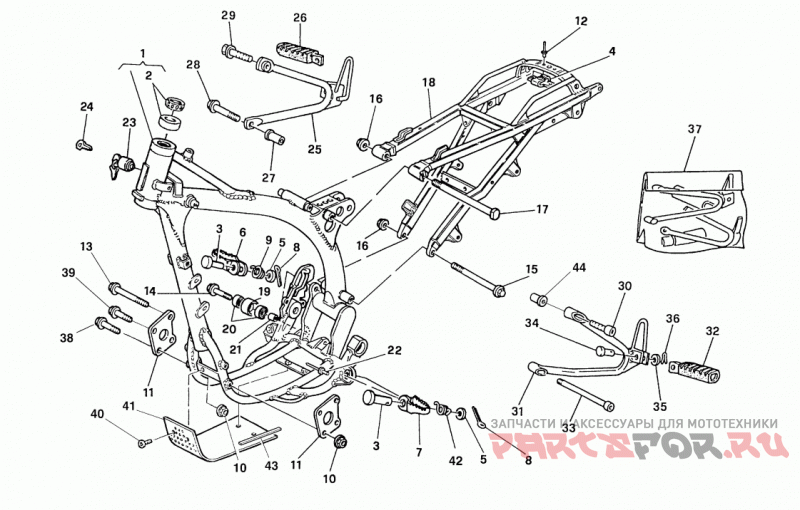

Frame, foot rests

Husqvarna TE 400-TE-TC 570-SM 570 R

Frame, foot rests

#

oem код

название

цена

1

Рама

Рама

1

Рама

Рама

1

Рама

Рама

1

Рама

Рама

2

Conical Rollers Bearing 25-50-

Conical Rollers Bearing 25-50-

2

Conical Rollers Bearing 29-48-

Conical Rollers Bearing 29-48-

3

Палец

Палец

4

Крепеж

Крепеж

5

Washer 16x10x1

Washer 16x10x1

6

Footrest, Front Rh

Footrest, Front Rh

7

Footrest, Front Lh

Footrest, Front Lh

8

Штифт

Штифт

9

Spring, Footrest, Rh

Spring, Footrest, Rh

10

Nut M8x1.25

Nut M8x1.25

12

Rivet 3.3x14

Rivet 3.3x14

13

Screw M8x95

Screw M8x95

14

% Screw Tef M8x1.25x40 Ch12

% Screw Tef M8x1.25x40 Ch12

15

Screw M8x145

Screw M8x145

16

Self Locking Nut

Self Locking Nut

17

Screw M8x130 Mm

Screw M8x130 Mm

18

Задняя рама

Задняя рама

20

Bearing, Radial Ball 608 2rs

Bearing, Radial Ball 608 2rs

21

Проставка

Проставка

23

Lock, Steering

Lock, Steering

24

Key, Brank

Key, Brank

26

Footrest, Rear Rh

Footrest, Rear Rh

28

Screw Te M10x1.25 Ch14

Screw Te M10x1.25 Ch14

29

Винт

Винт

30

Винт

Винт

32

Footrest, Rear Lh

Footrest, Rear Lh

34

Винт

Винт

35

Washer 6.4x12x1

Washer 6.4x12x1

36

% Pin, Cotter 1.3x12

% Pin, Cotter 1.3x12

37

Footrest Bracket Kit

Footrest Bracket Kit

38

Screw M8x95

Screw M8x95

39

Винт

Винт

40

Screw Ttei M6x1.00x15

Screw Ttei M6x1.00x15

41

Engine Guard

Engine Guard

42

Spring, Footrest, Lh

Spring, Footrest, Lh

44

Nut M8x1.25

Nut M8x1.25
