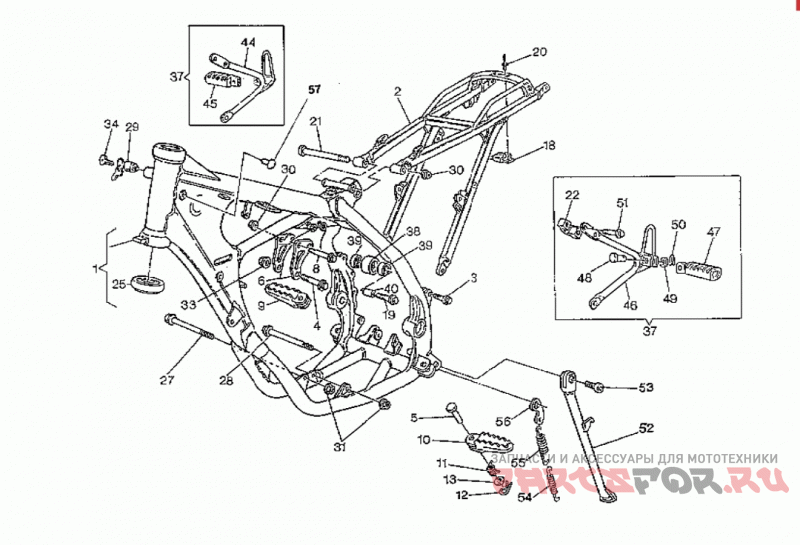

Frame, foot rests

Husqvarna WR-WR U.S.A. 250-360-CR 250

Husqvarna
#oem кодцена
1
8C0093006
Рама
2
800091535
Задняя рама
3
Z00069056
Винт
4
8A0062797
Screw Te M10x1.25 Ch14
5
Y00073140
Палец
6
800069434
Plate, Engine Mount
8
Z00062795
Винт
9
80A089953
Footrest, Front Rh
10
80A089962
Footrest, Front Lh
11
800089882
Spring Right. Foot-rest
11
8A0089882
Spring Left Foot-rest
12
64ND20068
Штифт
13
8A0001815
Washer 16x10x1
18
800069150
Крепеж
19
800062796
% Screw Tef M8x1.25x40 Ch12
20
800033373
Rivet 3.3x14
21
800069111
Screw M8x130 Mm
22
800071091
Болт
25
151307001
Conical Rollers Bearing 25-50-
25
800087243
Conical Rollers Bearing 29-48-
27
Y00073458
Винт
28
YA0073458
Винт
29
800043391
Lock, Steering
30
Y00043928
Self Locking Nut
31
Y00043928
Self Locking Nut
33
800042022
% Nut M10x1.25
34
800035531
Key, Brank
37
8A0071086
Footrest Bracket Kit
38
800059433
Roller, Chain Tensioner
39
800063312
Bearing, Radial Ball 608 2rs
40
8000H3010
Проставка
44
800071088
Rear Foot Rest Bracket Right
45
800066652
Footrest, Rear Rh
46
8A0071087
Bracket, Rear Left Footrest
47
800066651
Footrest, Rear Lh
48
800041459
Винт
49
62N115504
Washer 6.4x12x1
50
64N120048
% Pin, Cotter 1.3x12
51
Z00069056
Винт
54
800062676
Spring, Side Stand Inner
55
800062675
Stand Outer Spring
56
800084176
Holder, Spring
