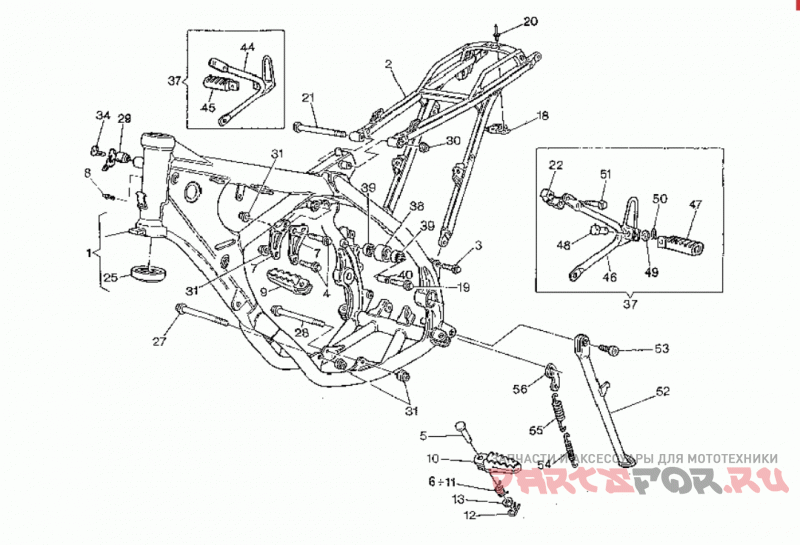

Frame, foot rests

Husqvarna WR-CR-WR U.S.A. 125

Husqvarna
#oem кодцена
1
8A0088853
Рама
1
8A0088897
Рама
1
8C0088853
Рама
2
800091535
Задняя рама
3
Z00069056
Винт
4
Z00062795
Винт
5
Y00073140
Палец
6
8A0089882
Spring Left Foot-rest
7
800073830
Plate, Engine Mount
9
80A089953
Footrest, Front Rh
10
80A089962
Footrest, Front Lh
11
800089882
Spring Right. Foot-rest
12
64ND20068
Штифт
13
62N115507
Washer 18x10x2
18
800069150
Крепеж
19
800062796
% Screw Tef M8x1.25x40 Ch12
20
800033373
Rivet 3.3x14
21
800069111
Screw M8x130 Mm
22
800071091
Болт
25
151307001
Conical Rollers Bearing 25-50-
25
800087243
Conical Rollers Bearing 29-48-
27
YA0073458
Винт
28
8B0073458
Axle, Engine Fixing M8x1.25x13
29
800043391
Lock, Steering
30
Y00043928
Self Locking Nut
31
Y00043928
Self Locking Nut
34
800035531
Key, Brank
37
8A0071086
Footrest Bracket Kit
38
800059433
Roller, Chain Tensioner
39
800063312
Bearing, Radial Ball 608 2rs
40
8000H3010
Проставка
44
800071088
Rear Foot Rest Bracket Right
45
800066652
Footrest, Rear Rh
46
8A0071087
Bracket, Rear Left Footrest
47
800066651
Footrest, Rear Lh
48
800041459
Винт
49
62N115504
Washer 6.4x12x1
50
64N120048
% Pin, Cotter 1.3x12
51
Z00069056
Винт
54
800062676
Spring, Side Stand Inner
55
800062675
Stand Outer Spring
56
800084176
Holder, Spring
