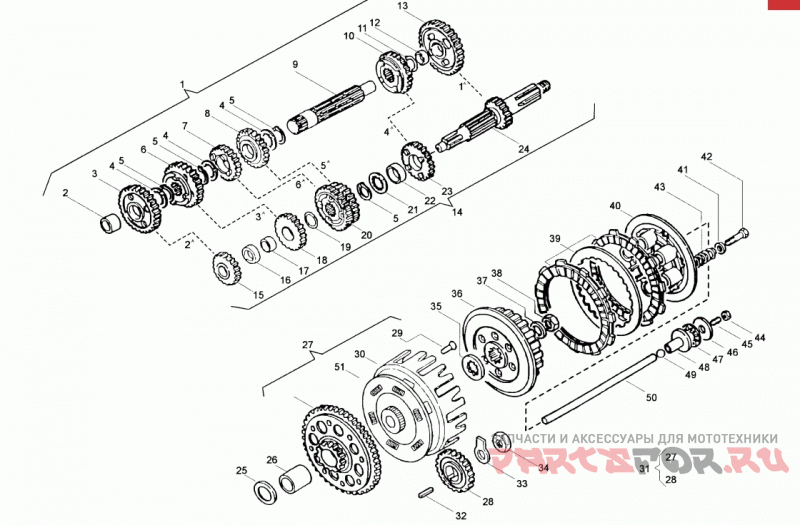

Transmission, clutch

Husqvarna TE 410-610 E Dual Purpose-TE 610 E-LT-SM 610 S

Husqvarna
#oem кодцена
1
800079689
Counter Shaft Assy
2
800063822
Втулка
3
800074864
Driven Gear 2nd Speed T29
4
161171701
Шайба
5
66N021211
Circlip 25mm Din471
6
800079690
Driven Gear 3rd Speed T27
7
800079691
Driven Gear 6th Speed T20
8
800079692
Driven Gear 5th Speed T22
9
8A0060463
Счетчик Вал
10
800079693
Driven Gear 4th Speed T24
11
151371401
Шайба
12
161241501
Втулка
13
800074862
Driven Gear 1st Speed T34
14
800079685
Main Axle Comp.
15
800074863
Gear Drive 2nd Speed T16
16
161248101
Проставка
17
161248001
Втулка
18
800079688
Gear 3rd Pinion 20t
19
161284201
Шайба
20
800079687
Gear Drive 5-6th Speed T24/26
21
8H0036022
Thrust Washer 32x25.1x1.0 Mm
22
800063821
Втулка
23
800079686
Gear Drive 4th Speed T22
24
800074861
Main Shaft T13
25
8C0016930
Washer 38x23
26
161538802
Bush 28x25 Mm
27
800085024
Clutch Housing Assy
28
800085024
Clutch Housing Assy
29
800036848
Заклёпка
30
800084424
Clutch Housing
31
8000A0371
Clutch Housing Assy
32
800022426
Шпонка
33
800086007
Шайба-замок
34
800086006
Nut M24x1.25
35
800038350
Washer 46x22x19
36
800085390
Внутренняя корзина
37
800036857
Washer 18mm
38
800036856
Nut M18x1
40
800048138
Disc, Clutch Pressure
41
Z00021535
Шайба
42
Z00062728
Screw Tef M6x1-ch8-l20
43
8000H7470
Пружинка
44
61N115062
Nut M6x1 Ch10
45
800054692
Screw, Adjuster M6x1.00x23
46
800035781
Шайба
47
800035780
Подшипник опорный
48
800054477
Piece, Clutch Push
49
6BN021509
Ball-steel, 5/16'
50
161531501
Clutch Control Rod
51
800079311
Plate Retaining Spring
