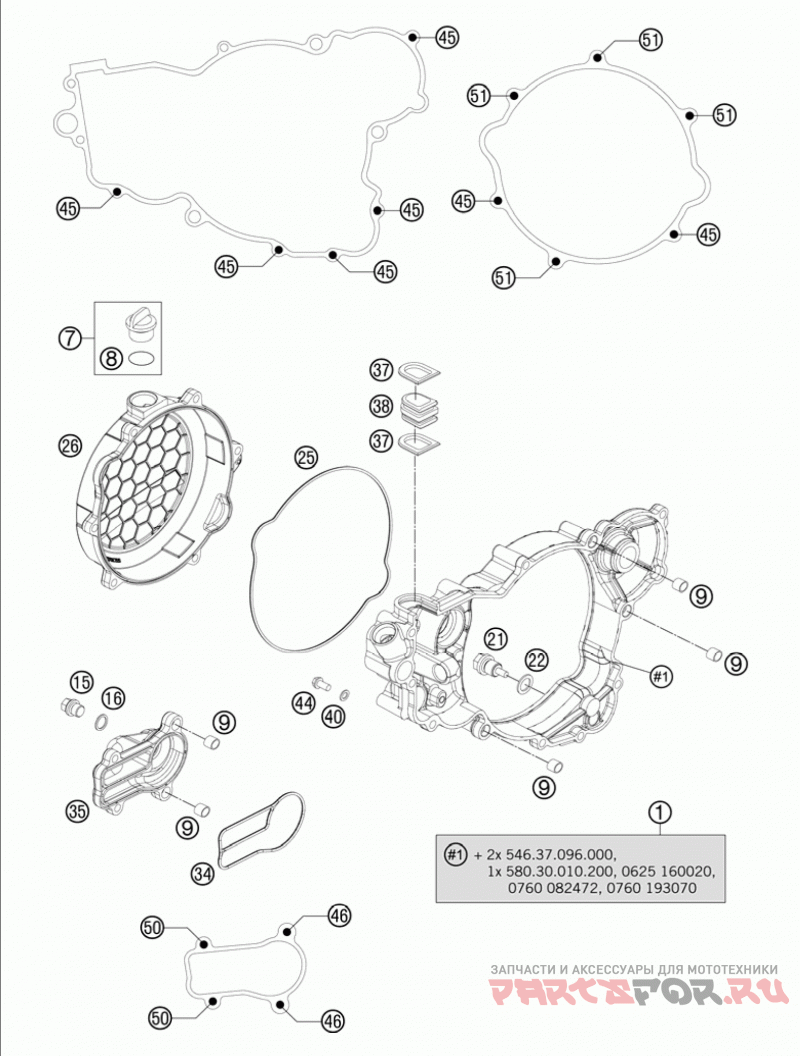

Кожух сцепления

Husaberg TE 250 ENGINE

Husaberg
#oem кодцена
7
58030120000
Oil Filler Cap M24x3 With O-r
8
0770191015
"o-ring 19, 00x3, 00 Nbr"
9
49030090000
"dowel 9, 8 X 7 X 10"
15
0910100003
Plug Din0910-m 10x1
16
0603100141
Copper Gasket Din7603-10x14x1
21
58030021000
"oildrain Plug W.mag. M 12x1, 5"
22
58038022000
"cu-seal Ring Din7603-12x18x1, 5"
25
55130027000
Clutch Cover Gasket
26
5483052600089
Clutch Cover Outside 11
37
54637107000
Sealing Element Bottom
38
54837091100
Sealing Carrier 07
40
0603061001
Cu-seal Ring Din7603-6x10x1
44
0025060126
Hh Collar Screw M6x12 Tx30
45
0025060206
Hh Collar Screw M6x20 Tx30
46
0025060256
Воротник Винт M6x25 Tx30
50
0025060556
Hh Collar Screw M6x55 Tx30
51
0025060606
Hh Collar Screw M6x60 Tx30
