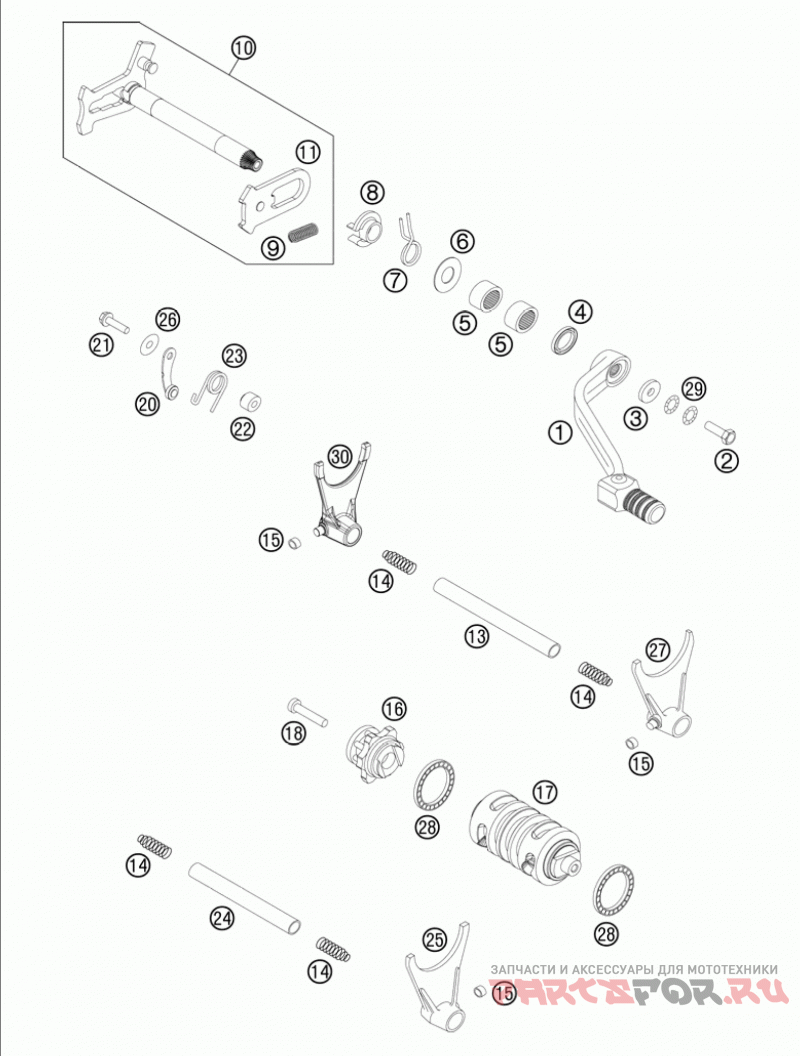

Механизм переключения

Husaberg FE 501 ENGINE

Husaberg
#oem кодцена
1
59034031000
Shift Lever Cpl.racing 2000
2
59009062016
Special Screw M6x16 Ws=8 10.9
3
50232050001
"steel Washer 6, 4x17x3"
4
0760142460
Shaft Seal Ring 14x24x6 B
5
54632095000
Needle Bear.hk 1412 14x20x12
6
54634050000
Stop Disk 14x30x1
7
54634014100
"return Spring 2, 2mm '95"
8
54634020000
Spring Guide
9
56534013100
"tensioning Spring 0, 8mm"
10
78034005044
Shift Shaft Cpl.
11
54634008044
Sliding Plate Cpl.
13
78034020000
"shift Rail 11, 8x101, 5"
14
58038023200
"pressure Spring 0, 9mm"
15
50334018100
"shifting Roller 6x8x5, 2"
17
78034012000
Shift Roller
18
0912060303
Ah Screw Din0912-m 6x30
21
0025050206
Hh Collar Screw M5x20 Tx30
22
54634052300
Sleeve For Locking Lever
23
60034023000
Arresting Lever Spring 03
24
78034019000
"shift Rail 11, 8x85"
25
59034001000
Shift Fork 5./6.gear 2000
26
0021050003
"washer Din9021-a 5, 3"
27
59034002000
Shift Fork 2./4.gear 2000
28
0625618050
Ball Bearing 61805 C3
29
50233041000
Pair Of Washers M 6 Nordlock
30
78034003000
Shifting Fork 1st/3rd Gear
