Рама

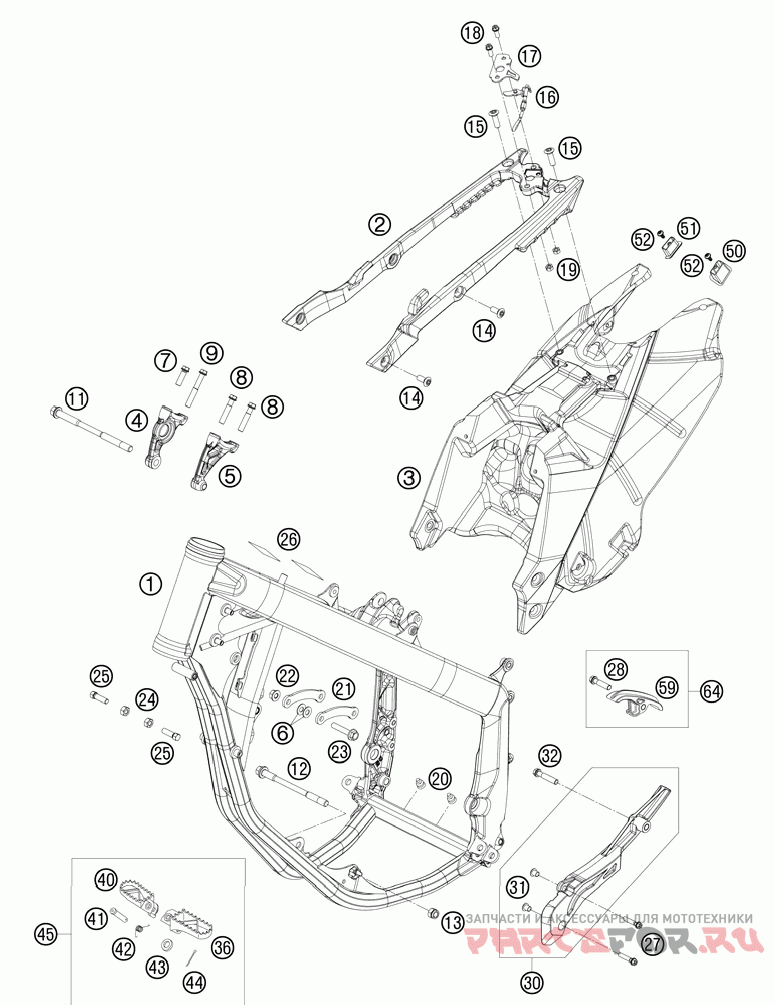

Husaberg FE 570 Chassis

Husaberg
#oem кодцена
1
8120300110056
"frame 450 Fe Grey Usa ""hb09"""
2
81203003000
Sub Frame Upper Part 2009
3
81203002000
Sub Frame 450 Fe 2009
4
81203005010
Reinforcing B. R/s
5
81203005020
Reinforcing B. L/s
6
77003013050
"washer 8, 5x18x1 Inox"
7
0025080256
Винт M8x25 Tx40
8
0025080406
Hh Collar Screw M8x40 Tx40
9
0025080556
Hh Collar Screw M8x55 Tx40
11
58403014000
Engine Brac.screw M10x160 Ws13
12
83003014000
Engine Bracket Screw M10x138
13
54310086100
Self Locking Nut M10 Cu Ws=14
14
0019080206
Counter-sunk Screw Isa45 M8x20
15
0019080266
Counter-sunk Screw Isa45 M8x26
16
81207050010
Operating Cable Incl. Hinge
17
81207050030
Cover Plate Seat Lock
18
0025060166
Hh Collar Screw M6x16 Tx30
19
0934060003
Hexagon Nut Din0934-m 6
21
81703013000
Reinforcing Bracket Fe 570
22
54310086200
Self Locking Nut M8 10.9
24
0934080003
Hexagon Nut Din0934-m 8
25
59001037000
Special Screw M8x26 Ws=10
26
50307012000
Adh. Foil Transp. 80x80 Mm 04
27
0025060306
Воротник Винт M6x30 Tx30
28
0025080306
Hh Collar Screw M8x30 Tx40
30
81203096000
Chain Guard 09
31
58314060050
Spacer Bush. F. Speedomet.bra.
32
0025080406
Hh Collar Screw M8x40 Tx40
36
59003040250
Foot Peg L/s Silver 02
40
59003041250
Foot Peg R/s Silver 02
41
54803044000
Bolt For Foot Ped 03
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
"washer Din0125-a10, 5"
44
0094032253
"pin Din0094-3, 2x25 Steel"
45
5030314013390
Footpeg L.+r. Cpl. 03
50
81203002050
Cap L/s
51
81203002060
Cap R/s
52
0081050121
Screw For Plastic K50x12 T20
59
77303053000
Chain Sliding Piece Below 07
64
77303053010
Chain Sliding Kit Below Cpl07
