  5. 550 FS Chassis

Электрика

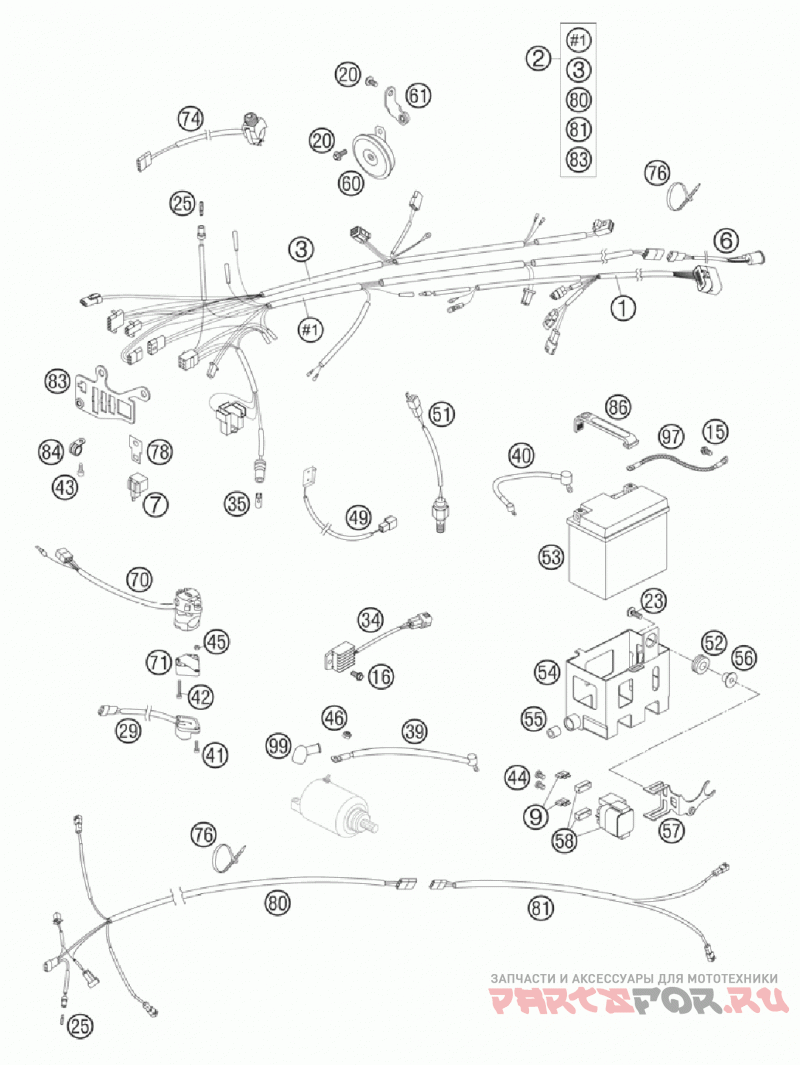

Husaberg 550 FS Chassis

Husaberg
#oem кодцена
1
80011075300
Ignition Wiring Harness 04
2
80011075600
Main Wiring Fe/fs-eu/aus 06
3
80011079100
Starter Wiring Harness 05
6
50311076000
Wiring Harness Rear 125-380'98
7
44611207200
Flasher Unit 97
9
58011109110
Fuse 10 A 2000
16
0015060123
Hh Collar Screw M 6x12 Ws=8
20
0024060106
Hh Collar Screw M6x10 Tx30
23
0014060203
Hh Collar Screw M 6x20 Ws=8
25
49111425200
"bulb 12v 2, 3w (w2x4, 6d)"
29
50311029000
Flasher Switch Cev '98
34
80011034000
Voltage Regulator 04
35
49011435100
"bulb 12v 5w (w2, 1x9, 5d) Phil."
39
80011059100
Starter Cable L=165mm 04
40
80011059050
Battery Cable L=155mm 04
41
0985040163
Flat Head Screw Din7985-m 4x16
42
0084040223
Cyl.head Screw Din0084-m 4x22a
43
0912050083
Ah Screw Din 912 M 5x8
44
0902060083
Ah Oval Screw Iso 7380 M 6x8
45
0934040003
Hexagon Nut Din0934-m 4
46
0985060003
Self Lock. Nut Din0985-m 6
49
58611050000
Brake Light Switch Cpl. 05
51
50311051100
Brake Light Switch Rear '98
52
41001052000
Rubber Sleeve D=12mm
53
80011053000
Battery 12v/7ah 04
54
80011054000
Battery Carrier 04
55
80011054050
Damping Rubber 04
56
80011056000
Distance Spacer 6mm 04
57
80011058050
Bracket For Starter Relay 04
58
58211058000
Starter Relay 12v '99
60
50311060000
Dc Horn 12v K80/l Leb
70
50311070000
H.light Switch Cev 2/4takt '98
71
13011070060
Adapter For Flasher Switch '98
74
59411074000
Starter Control 04
78
58211031100
Bracket For Flasher Relay
81
80011081000
Flash. Wiring Harness
83
54811083100
Support Bracket Exc 2005
84
57013070100
"pvc-clamp 7, 9 Mm Heyco 3355"
86
54611186000
Rubber Band
97
80011097000
Ground Cable 04
99
58440099000
Protection Cap F. Starter Eng.
