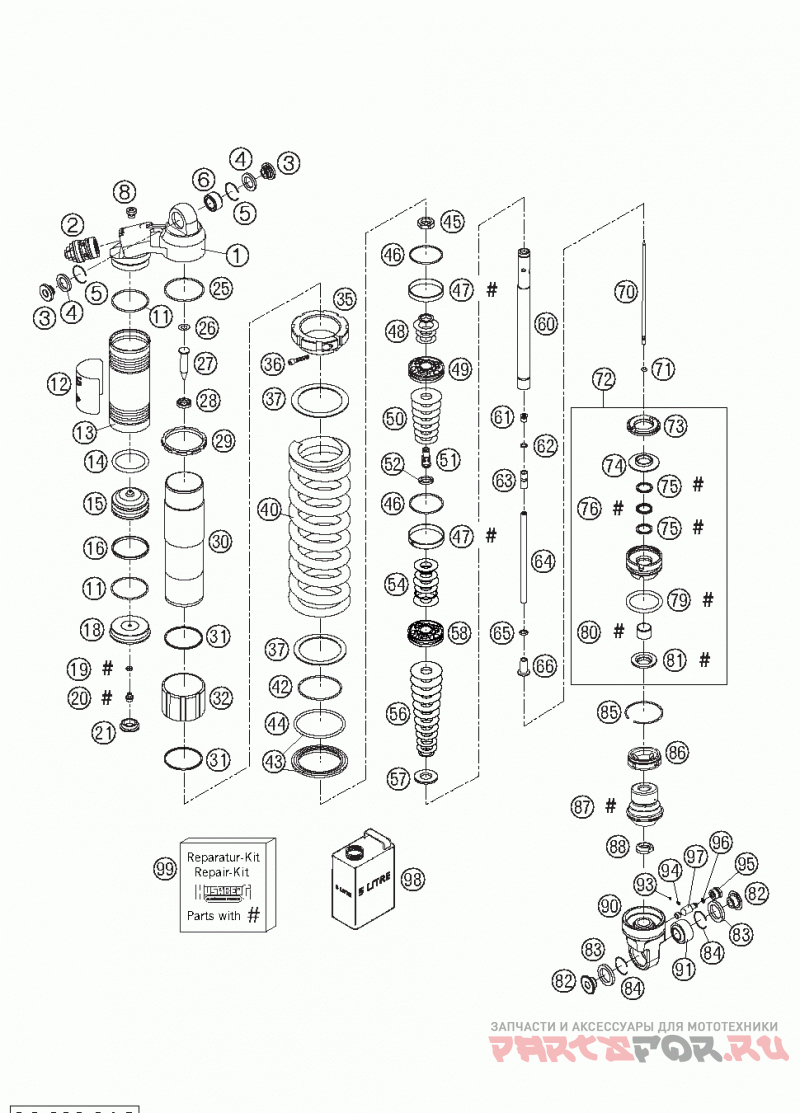

Shock absorber disassembled fe 450-650 ref# 46 - 62

Husaberg 450_550_650_FE_FS Chassis & Engine

Husaberg
#oem кодцена
46
50180099
"o-ring Viton 44, 17x1, 78"
47
50180135
Piston Ring 50-8
54
50180034
"backplate 16x20x0, 30"
54
50180045
"shim 16x28x0, 15"
54
50180054
"shim 16x28x0, 20"
54
50180056
"shim 16x32x0, 20"
54
50180057
"shim 16x34x0, 20"
54
50180067
"shim 16x36x0, 25"
61
50180200
Bush M8x1
62
50180157
"o-ring Viton 7x1, 5"
48*
50180034
"backplate 16x20x0, 30"
48*
50180055
"shim 16x30x0, 20"
48*
50180056
"shim 16x32x0, 20"
48*
50180057
"shim 16x34x0, 20"
48*
50180058
"shim 16x36x0, 20"
48*
50180210
Washer 16x21x1
49*
50180311
"piston 6+6x7/4, 5 Vb 1, 0"
50*
50180034
"backplate 16x20x0, 30"
50*
50180065
"shim 16x32x0, 25"
50*
50180068
"shim 16x38x0, 25"
50*
50180078
"shim 16x40x0, 30"
51*
50180485
Holder D=16 M16x1 L=48
52*
50180499
Backplate D=23 D=16 H3
56*
50180054
"shim 16x28x0, 20"
56*
50180055
"shim 16x30x0, 20"
56*
50180056
"shim 16x32x0, 20"
56*
50180057
"shim 16x34x0, 20"
56*
50180058
"shim 16x36x0, 20"
56*
50180068
"shim 16x38x0, 25"
56*
50180060
"shim 16x40x0, 20"
56*
50180061
"shim 16x42x0, 20"
56*
50180071
"shim 16x44x0, 25"
57*
50180233
"rebound Disc D=34, H=2"
58*
50180446
"piston 6+6x3, 5/4, 5"
60*
50180486
Piston Rod D=18 L=146 M16x1
