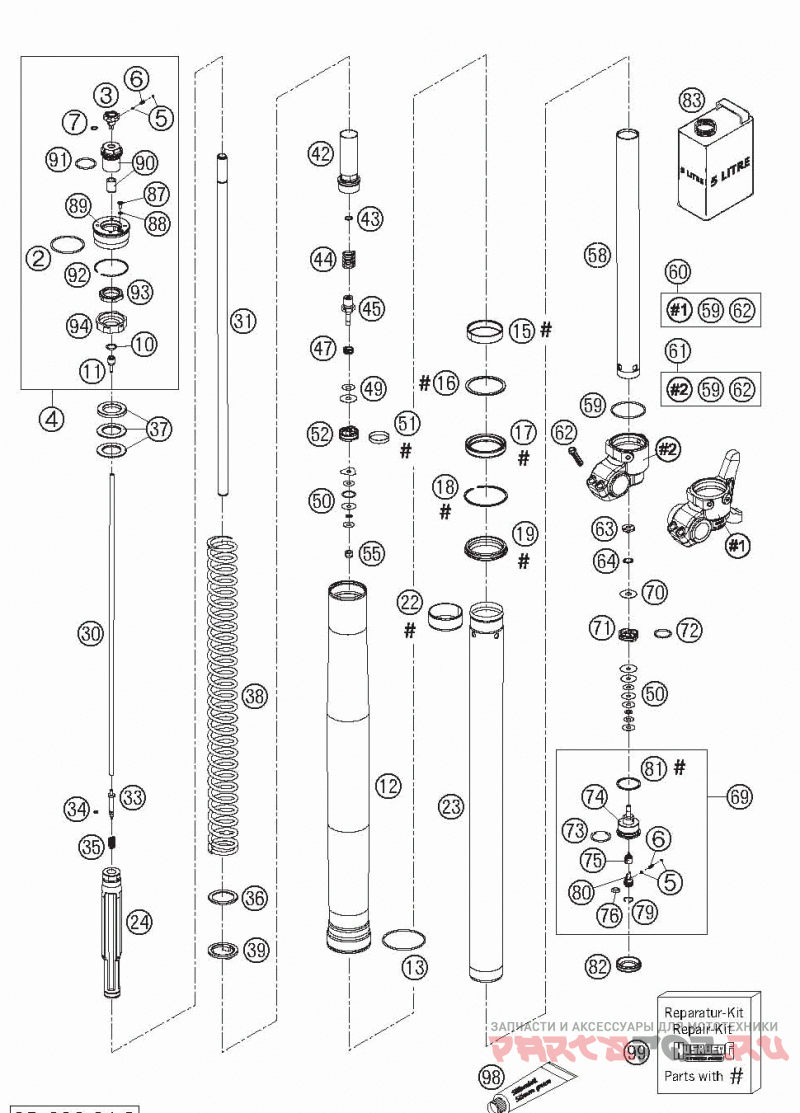

Fork legs fs 450-650 ref# 2 - 47

Husaberg 450_550_650_FE_FS Chassis & Engine

Husaberg
#oem кодцена
2
46810340
O-ring Nbr 45x2
3
48600018
Knob Reboung Adjuster
4
48600075S
Pre-load Adjuster Cpl.(1 Pc.)
5
40540603
Steel Ball D=3mm
6
48600028
"spring D=2, 9 L=7, 9"
7
48600044
"o-ring Nbr 6x1, 5"
10
48600043
"o-ring Nbr 12x1, 5"
11
48600019
Holder F.adjustment Tube D=4mm
13
48600016
Guiding Ring D=58mm
16
48600013
"support Ring 50 X 57, 6 X 1, 5"
17
48600399
"oil Seal Ring 48x57, 8x9, 5"
18
48600070
Lock Washer Sb58
19
48600400
"dust Cap D=48 58, 4x11, 8"
30
48600094
Adjustment Tube L=492mm
31
48600412
Piston Rod 14x11x1 L=526
33
48600189
Needle Rebound 2003
34
48600046
"o-ring Nbr 3x1, 5"
35
48600033
Spring Rebound Needle C=4n/mm
36
48600113
"washer 32x42x2, 5"
37
48600036
"spacer 42x26, 5x2, 5"
37
48600037
"spacer 42x26, 5x5"
37
48600053
"spacer 42x26, 5x1, 5"
38
91410020S
"spring 4, 8n/mm Set D=5, 25 Mm"
38
91410019S
"spring 4, 6n/mm Set D=5, 1mm"
39
48600021
"interm. Ring 26, 2 X 43 X 3"
44
48600403
"rebound Spring D=15mm L=34, 5mm"
45
48600203
Tab Rebound D=3 03
47
35480377
"spring Check Valve D=0, 5"
12*
48600381E
Outer Tube L=577 D=54/60mm
15*
48600429
Du-bush D48xd52x12ddl02
22*
48600428
Du-bush D47xd49x20ddl02
23*
48600437
Inner Tube D=48 L=595
24*
48600380S1
"hydr.stop L=200mm D=31, 9 Cpl."
42*
48600200S1
"screw Sleeve M29, 3x1 L=65 Cpl."
43*
48600239
"o-ring Nbr 8x1, 25"
