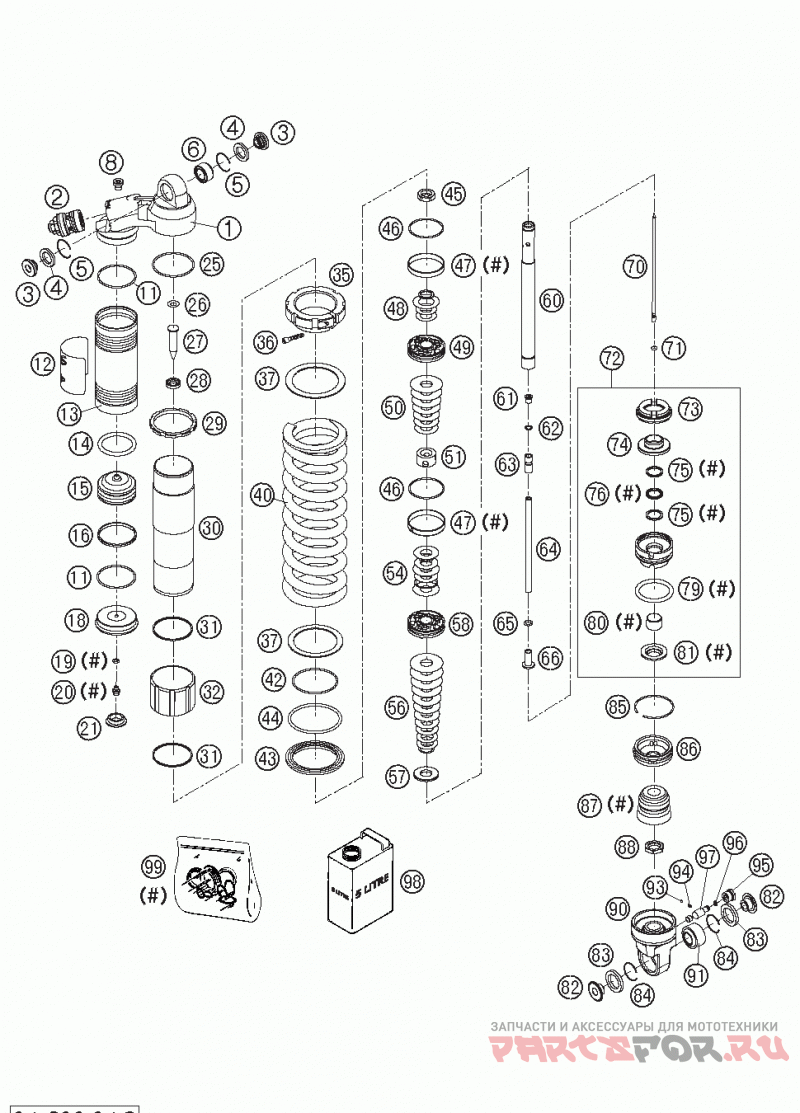

Shock absorber disassembled fs 450 / 650 ref# 77 - 91

Husaberg 450_501_550_650 Chassis & Engine

Husaberg
#oem кодцена
71
46811265
"o-ring Viton 2, 2x1, 6"
72
50180118S2
"adaptor Cpl. D=50, H=28,5"
73
50180107
Rebound Rubber
74
50180304
"steel Disc 18, 5x43, 7x6"
75
50180102
"backupring 22, 55x1, 5"
76
50180101
"quad Ring 18x2, 62"
79
50180103
O-ring 41x5
80
50180104
Du-bush 18x20x15
81
50180082
Dust Seal 1835
82
50180153
Adaptor-bush Kgw 32x10x26
83
50180159
Shaft Seal Ring Kgw D=32
84
50180175
Circlip Kgw D=32
85
50180126
"circlip 53x1, 75"
86
50180165
Cover D=50
87
50180276
Bump Rubber Wp60 D=18-26
88
50180283
Contra Nut M18x1 H=5
90
50180358
Shock Abs.bottom 54x20x32
91
50180179
Pivot Bearing Kgw 1632
93
40540603
Steel Ball D=3mm
95
50180281
Reservoir Cap M14x1
96
50180222
"o-ring Nbr 4x1, 5"
97
50180280
"adjusting Screw 80 Deg., L=39"
98
50180751S1
Shock Absorber Fluid 5 Lt
99
R12005
Rep.kit Gasket Seal Pds 2002
