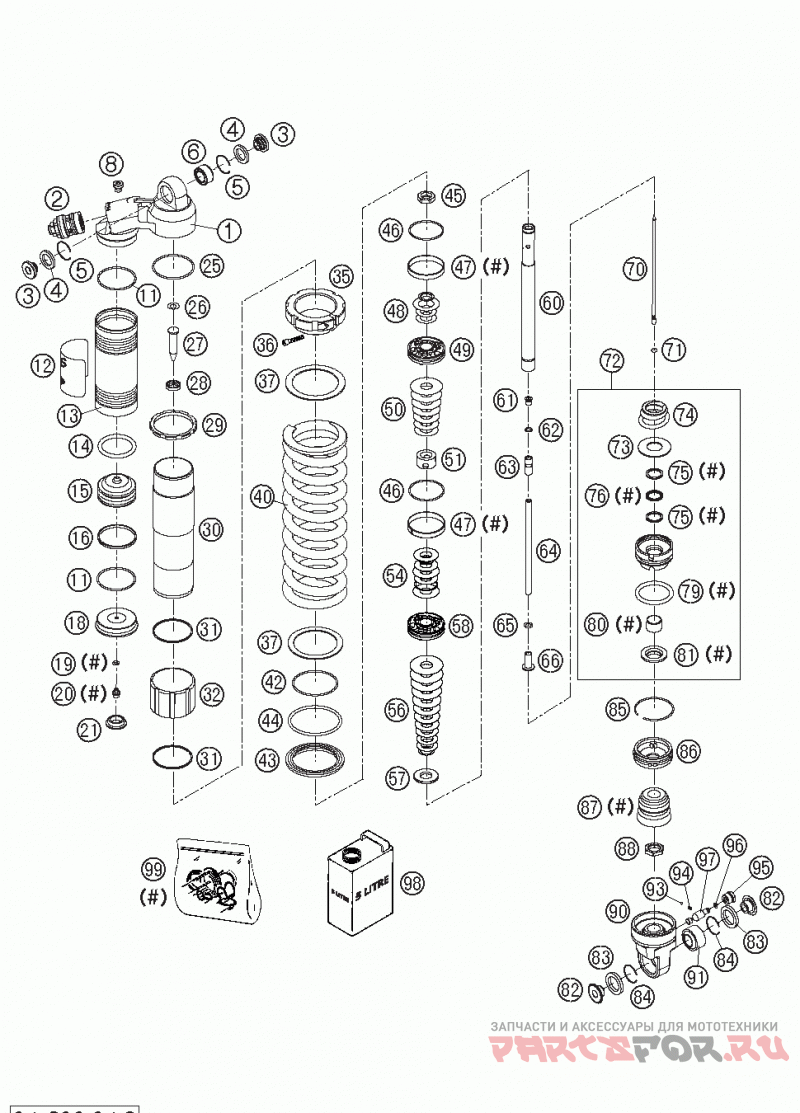

Shock absorber disassembled fc, fe 450-650 ref# 56 - 99

Husaberg 450_501_550_650 Chassis & Engine

Husaberg
#oem кодцена
56
50180065
"shim 16x32x0, 25"
56
50180066
"shim 16x34x0, 25"
57
50180313
"disc Rebound D=34, H=0"
60
50180294
"spindel D=18, L=153, M16x1"
61
50180200
Bush M8x1
62
50180157
"o-ring Viton 7x1, 5"
63
50180201
Needle Seat M8x1
64
50180264
"tube M18x1 L=151, 5"
65
48600049
O-ring Nbr 8x2
66
50180279
Tube Adaptor M8x1 L=23
70
50180261
Needle L=175
71
46811265
"o-ring Viton 2, 2x1, 6"
72
50180384S
"adaptor Cpl. D=50 H=26, 5"
73
50180314
Disc Rebound Spring
74
50180385
Rebound Spring 2003
75
50180102
"backupring 22, 55x1, 5"
76
50180101
"quad Ring 18x2, 62"
79
50180103
O-ring 41x5
80
46180119
Du-bush 18x20x12
81
50180082
Dust Seal 1835
82
50180153
Adaptor-bush Kgw 32x10x26
83
50180159
Shaft Seal Ring Kgw D=32
84
50180175
Circlip Kgw D=32
85
50180126
"circlip 53x1, 75"
86
50180165
Cover D=50
87
50180276
Bump Rubber Wp60 D=18-26
88
50180283
Contra Nut M18x1 H=5
90
50180358
Shock Abs.bottom 54x20x32
91
50180179
Pivot Bearing Kgw 1632
93
40540603
Steel Ball D=3mm
95
50180281
Reservoir Cap M14x1
96
50180222
"o-ring Nbr 4x1, 5"
97
50180280
"adjusting Screw 80 Deg., L=39"
98
50180751S1
Shock Absorber Fluid 5 Lt
99
R12008
Repair-kit Gasket 5018 Pds 03
