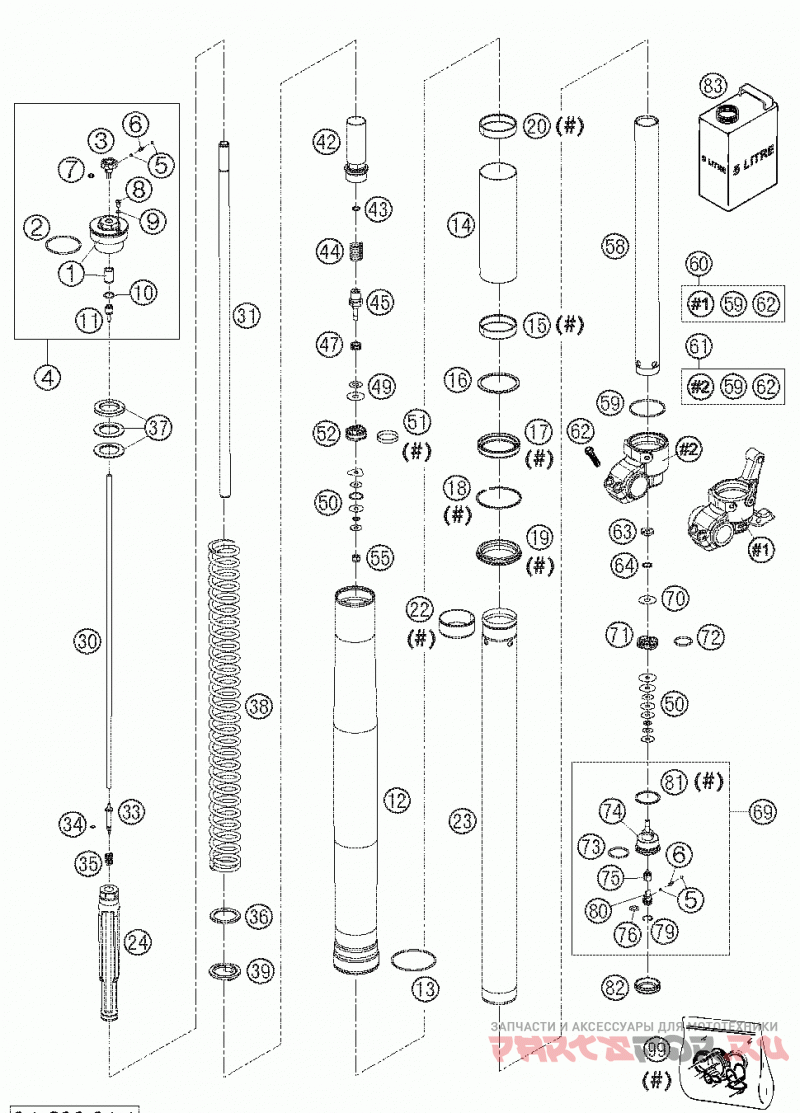

Fork legs fe 450-650 ref# 38 - 71

Husaberg 450_501_550_650 Chassis & Engine

Husaberg
#oem кодцена
38
91410015S
"spring 4, 4n/mm Set D=5, 1mm"
38
91410016S
"spring 4, 6n/mm Set"
38
91410017S
"spring 4, 8n/mm Set"
39
48600021
"interm. Ring 26, 2 X 43 X 3"
42
48600196S
"screw Sleeve M29, 3x1 L=90 Cpl."
43
48600239
"o-ring Nbr 8x1, 25"
44
48600192
"rebound Spring D=15mm L=34, 5mm"
45
48600203
Tab Rebound D=3 03
47
35480377
"spring Check Valve D=0, 5"
49
43570120
"shim 8x18x0, 10"
49
48600062
"check Valve 8x24x0, 1"
49
48600215
"check Valve 8x20x0, 1"
49
48600216
"check Valve 8x22x0, 1"
50
48600063
"shim 6x24x0, 1"
50
48600064
"shim 6x22x0, 1"
50
48600065
"shim 6x20x0, 1"
50
48600116
"shim 6x24x0, 1 Delta"
50
40540401
"shim 6x14x0, 1"
50
40540402
"shim 6x16x0, 1"
50
40540403
"shim 6x18x0, 1"
50
40540414
"shim 6x16x0, 25"
50
40540415
"shim 6x18x0, 25"
50
40540450
"shim 6x9, 5x0, 3"
51
48600060
Piston Ring 5x1x84
52
48600042
"piston Rebound D=27, 7"
55
40540486
"nut M6x0, 5 Rebound"
58
48600140
"tube 29, 3x1x385 Alu"
59
48600048
O-ring Nbr 46 X 2
61
48600238S
Axle Clamp R/s Cpl. Usd48 04
63
48600163
"check Valve Nut M6x0, 5 D=2"
64
48600202
"spring Check Valve D=0, 7"
70
48600061
"check Valve 8x24x0, 4"
71
48600047
"piston Compression D=27, 9"
