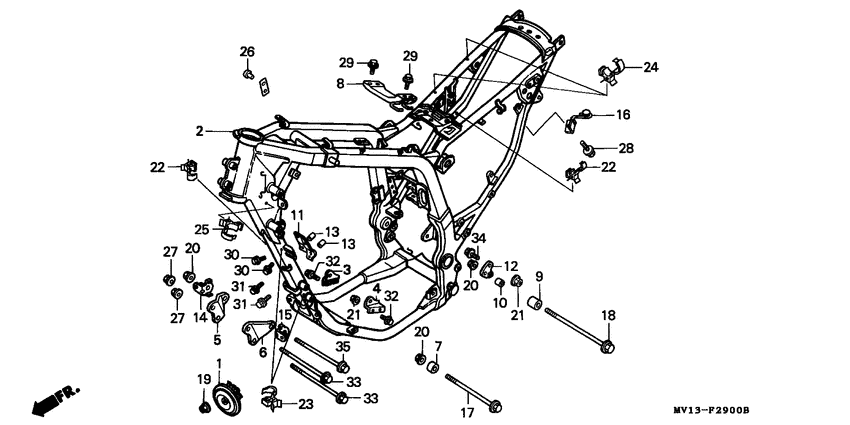

Frame body

Honda XRV750 Africa Twin

Honda
Frame body
#oem кодцена
1
38110-KW3-008
Сигнал
2
50100-MV1-940ZA
Body comp.*nh138*
3
50123-MV1-000ZA
Plate r en*nh138*
4
50124-MV1-000ZA
Plate l en*nh138*
5
50181-MS8-000
Plate,r fr eng ha
6
50182-MS8-000
Plate,l fr eng ha
7
50184-MM9-000
Collar,r eng hng
8
50185-MS8-000
Bridge,main pipe
9
50186-MS8-000
Collar a,engine m
10
50187-MS8-000
Collar b,engine m
11
50188-MV1-000
Plate,fr head eng
12
50202-MS8-000ZA
Plate,r rr*nh138*
13
50204-MS8-000
Collar b,fr eng h
14
64207-MS8-000
Stay,r.lower cowl
15
64208-MS8-000
Stay,l.lower cowl
16
80113-MV1-000
Stay,rr.fender ru
17
90108-GE1-670
Bolt, flg (10x155)
18
90117-KW3-000
Bolt, flange, 10x250
19
90208-425-870
Nut, flange, 8mm
20
90308-382-670
Nut, flange, 10mm
21
90309-357-000
Nut, hex., 8mm
22
90690-GHB-631
Clip, cable, 8mm
23
90690-GHB-641
Clip, cable, 10mm
24
90690-GHB-651
Clip, cable, 15mm
25
90690-GHB-661
Clip, cable, 20mm
26
90841-001-000
Голвка вилта
27
94050-08000
Гайка
28
95701-0600800
Bolt, flange, 6x8
29
95701-060-140-0
Болт
30
95701-080-140-8
Болт
31
95701-080-400-8
Болт
32
95701-080-450-8
Болт
33
95701-0809500
Bolt, flange, 8x95
34
96300-0802200
Болт
35
96400-101-600-0
Bolt flg 10x160
