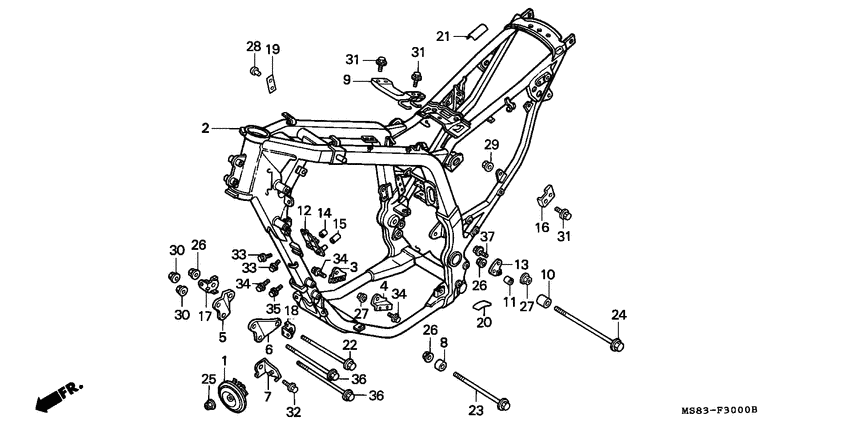

Frame body

Honda XRV650 Africa Twin

Honda
Frame body
#oem кодцена
1
38120-MM9-018
Horn comp.,low
замена
38120-MM9-008
Horn comp,.low (m
2
50100-MS8-000ZA
Body comp*nh-138*
3
50123-MS8-000ZA
Plate,r.en*nh138*
4
50124-MS8-000ZA
Plate,l.en*nh138*
5
50181-MS8-000
Plate,r fr eng ha
6
50182-MS8-000
Plate,l fr eng ha
7
50183-MAW-760
Stay,horn
замена
50183-MS8-000
Stay,horn
8
50184-MM9-000
Collar,r eng hng
9
50185-MS8-000
Bridge,main pipe
10
50186-MS8-000
Collar a,engine m
11
50187-MS8-000
Collar b,engine m
12
50188-MS8-000
Plate,fr.head eng
13
50202-MS8-000ZA
Plate,r rr*nh138*
14
50203-MS8-000
Collar, fr. engine hanger (a)
15
50204-MS8-000
Collar b,fr eng h
16
50211-MS8-000
Stay,side cover s
17
64207-MS8-000
Stay,r.lower cowl
18
64208-MS8-000
Stay,l.lower cowl
19
87501-MS8-610
Plate,registered
20
87507-MB4-670
Label, reserve tank
21
87565-MS8-870ZA
Label,colo*type1*
22
96400-101-600-0
Bolt flg 10x160
22
90103-162-000
Bolt, engine hanger
23
90108-GE1-670
Bolt, flg (10x155)
24
90117-KW3-000
Bolt, flange, 10x250
25
90208-425-870
Nut, flange, 8mm
26
90308-382-670
Nut, flange, 10mm
27
90309-357-000
Nut, hex., 8mm
28
90841-001-000
Голвка вилта
29
94050-06000
Гайка
30
94050-08000
Гайка
31
95701-060-100-0
Болт
замена
95700-060-100-0
Болт
32
95701-0801207
Bolt, flange, 8x12
33
95701-080-140-8
Болт
34
95701-080-450-8
Болт
35
95701-080-550-8
Болт
36
95701-0809500
Bolt, flange, 8x95
37
96300-0802200
Болт
