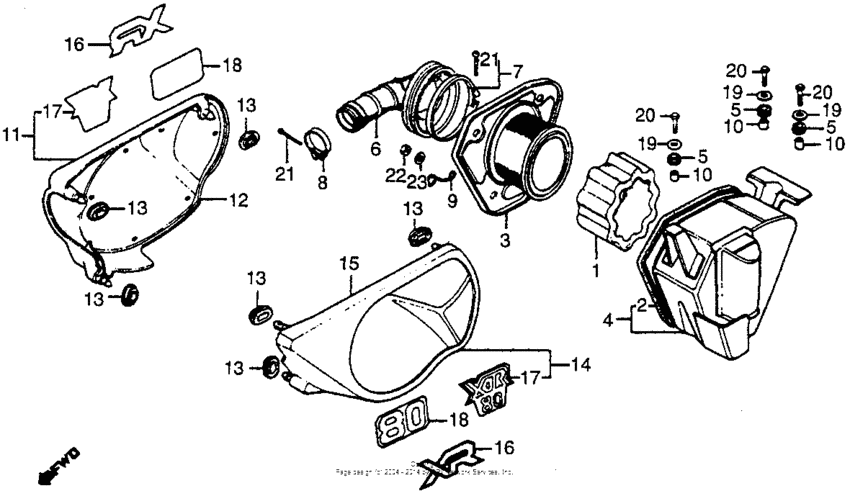

Air cleaner + side cover 79-82

Honda XR80

Air cleaner + side cover 79-82

Air cleaner + side cover 79-82

1

2

3

4

5

5

5

6

7

8

9

10

10

10

10

10

10

12

13

13

13

13

13

13

15

16

16

19

19

19

20

20

20

21

21

22

23

#

oem код

название

цена

1

Element,cleaner

Element,cleaner

2

Pkg,cleaner case

Pkg,cleaner case

3

Cover,air/c case

Cover,air/c case

4

Корпус

Корпус

5

Опора

Опора

6

Tube,air/c conn

Tube,air/c conn

7

Band,cleaner

Band,cleaner

8

Band carb insulat

Band carb insulat

9

Clip,a/vent tube

Clip,a/vent tube

10

Collar, rr. fender

Collar, rr. fender

10

Фланец

Фланец

12

83510-176-750ZA

Cover,r.side*r-23

Cover,r.side*r-23

13

Grommet, air cleaner case

Grommet, air cleaner case

15

83610-176-750ZA

Cover,l.side*r-23

Cover,l.side*r-23

16

Emb,side cover

Emb,side cover

19

Washer, wheel, 6mm

Washer, wheel, 6mm

20

Bolt, hex., 6x25

Bolt, hex., 6x25

21

93500-040-250-A

Screw, pan, 4x25

Screw, pan, 4x25

22

94001-062-000-S

Гайка

Гайка

HEX., 6MM

23

Шайба

Шайба

PLAIN, 6MM
