Air cleaner + side cover для мотоциклов Honda XR75 (1977)

Москва и регионы России

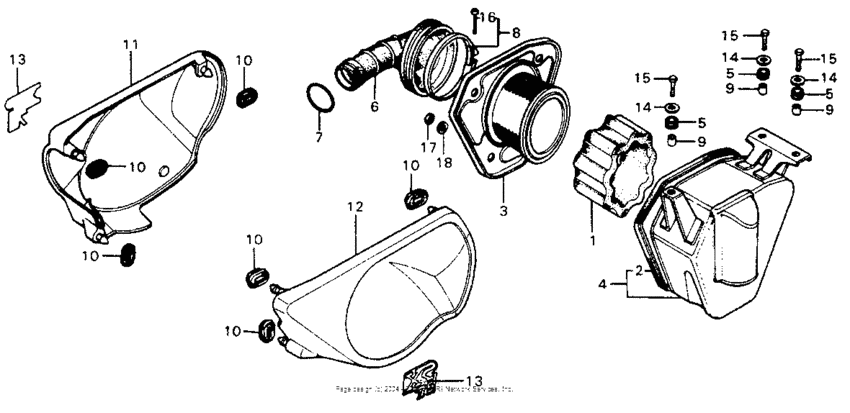

Air cleaner + side cover

Honda XR75

Air cleaner + side cover

Air cleaner + side cover

1

1

2

3

4

5

5

5

6

7

8

9

9

9

10

10

10

10

10

10

11

12

13

13

14

14

14

15

15

15

16

17

18

#

oem код

название

цена

1

Element,cleaner

Element,cleaner

Use from Frame SN 1408178

1

Элемент

Элемент

Use from Frame SN 1400563 to 1408177

2

Pkg,cleaner case

Pkg,cleaner case

3

Cover,air/c case

Cover,air/c case

4

Корпус

Корпус

5

Опора

Опора

6

Патрубок

Патрубок

7

Band a,cleaner

Band a,cleaner

8

Band,cleaner

Band,cleaner

9

Collar,winkerstay

Collar,winkerstay

10

Grommet, air cleaner case

Grommet, air cleaner case

11

83511-176-000ZB

Cover,side*r-23*

Cover,side*r-23*

12

83611-176-000ZB

Cover,side*r-23*

Cover,side*r-23*

13

Emblem,side cover

Emblem,side cover

14

Washer, wheel, 6mm

Washer, wheel, 6mm

15

Bolt, hex., 6x25

Bolt, hex., 6x25

16

93500-040-250-A

Screw, pan, 4x25

Screw, pan, 4x25

17

94001-062-000-S

Гайка

Гайка

HEX., 6MM

18

Шайба

Шайба

PLAIN, 6MM
