Рама для мотоциклов Honda XR500 (1980)

Москва и регионы России

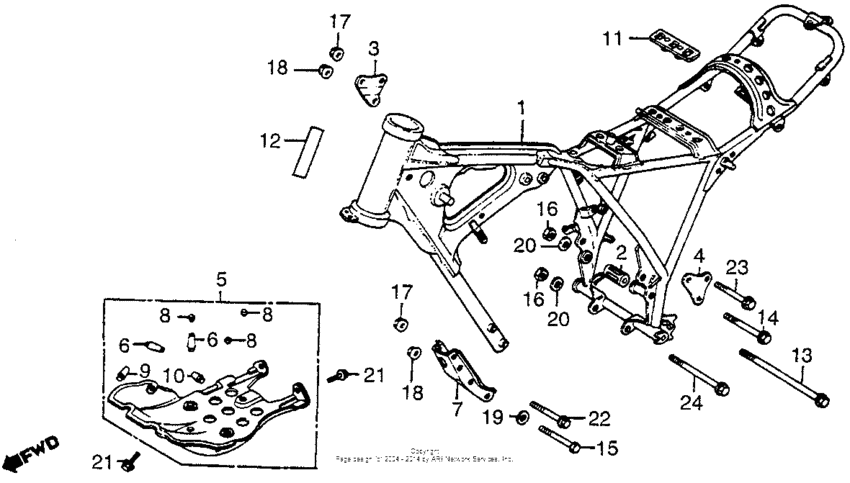

Рама

Honda XR500

Рама

Рама

1

2

3

4

5

6

6

7

8

8

8

9

10

11

12

13

14

15

16

16

17

17

18

18

19

20

20

21

21

22

23

24

#

oem код

название

цена

1

50100-429-670ZA

Frame *nh1*

Frame *nh1*

2

Collar,eng,hngr

Collar,eng,hngr

3

50138-429-000ZA

Plate,r,eng*nh-1*

Plate,r,eng*nh-1*

4

50139-429-000ZA

Plate,l,eng*nh-1*

Plate,l,eng*nh-1*

5

Plate, skid

Plate, skid

6

Rubber a, stopper

Rubber a, stopper

7

50353-429-000ZA

Hanger, fr. *nh1*

Hanger, fr. *nh1*

8

Rubber b, stopper

Rubber b, stopper

9

Rubber b, stopper

Rubber b, stopper

10

Rubber c, stopper

Rubber c, stopper

11

Cushion c,seat

Cushion c,seat

12

87560-373-780ZA

Label, caution *nh0*

Label, caution *nh0*

13

Bolt,flg,12x240

Bolt,flg,12x240

14

Bolt.flange 10x73

Bolt.flange 10x73

15

Болт

Болт

16

94001-120-000-S

Nut, hex., 12mm

Nut, hex., 12mm

17

Гайка

Гайка

FLANGE, 8MM

18

Гайка

Гайка

FLANGE, 10MM

19

Washer, plain, 10mm

Washer, plain, 10mm

20

Шайба

Шайба

PLAIN, 12MM

21

95701-060-120-0

Болт

Болт

FLANGE, 6X12

22

95801-080-600-0

Bolt, flange, 8x60

Bolt, flange, 8x60

23

Bolt, flange, 8x65

Bolt, flange, 8x65

24

95800-121-250-0

Bolt,flg.,12x125

Bolt,flg.,12x125
