Kick starter spindle 81-82

Honda XR500R

Honda

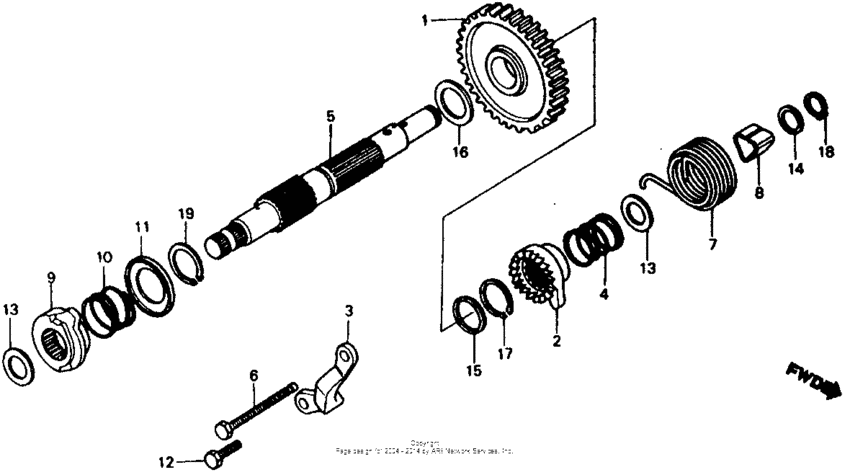

Kick starter spindle 81-82
#oem кодцена
1
28211-428-030
Pinion,kick start
2
28213-428-000
Ratchet,kick stat
3
28215-429-000
Plate,kick,stoper
4
28223-314-000
Spring,kickstart
5
28250-428-030
Spdl,kick start.
6
28254-428-000
Pin,kick spg hook
7
28261-428-000
Spg,kick starter
8
28265-428-000
Collar,kick stat
9
28272-429-000
Cam,kick shaft
10
28283-428-000
Spring, cam reset
11
28284-428-000
Пружина
12
90006-429-000
Bolt,hex,8x20
13
90452-701-000
Washer, thrust, 18mm
14
90453-235-000
Washer, thrust, 16mm
15
90453-428-000
Washer, thrust, 22mm
16
90456-323-000
Washer, thrust, 22mm
17
90601-329-000
Стопорное кольцо (22mm)
18
9451016000
Circlip, external, 16mm
19
9451024000
Стопорное кольцо (24mm)
