Transmission 85

Honda XR350R

Honda

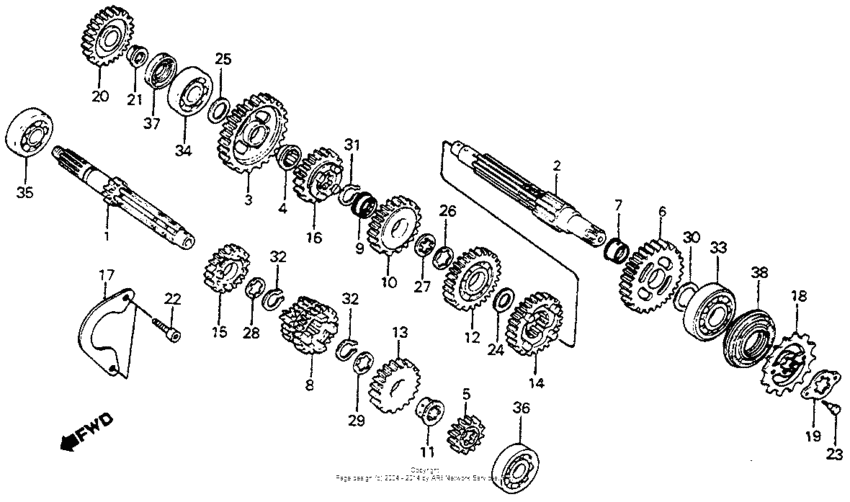

Transmission 85
#oem кодцена
1
23210-KN5-671
Shaft comp.,main
2
23220-KN5-670
Counter shaft com
3
23411-KN5-670
Gear,countershaft
4
23412-KN5-670
Bush,20mm
5
23421-KF0-000
Gear,m/shaft 2nd
6
23431-KN5-670
Gear,countershaft
7
23432-KN5-670
Bush,24mm
8
23441-KN5-670
Gear,m-3,-4
9
23442-ME5-010
Collar,splin 25mm
10
23451-KN5-671
Gear third counte
11
23452-KF0-000
Collar,24mm
12
23471-KN5-670
Gear,countershaft
13
23481-KF0-000
Gear,m/shaft 5th
14
23491-KN5-670
Gear,countershaft
15
23501-KG0-000
Gear top m/shaft
16
23511-KN5-671
Gear top counter
17
23521-KF0-000
Plate,brg set
18
23801-KT2-P00
Sprkt.drive,14t
19
23811-HA5-670
Пластина
20
28221-KF0-000
Gear,kick st idle
21
28222-KN5-670
Bush,14mm
22
96600-060-160-0
Болт
23
90118-958-003
Bolt, flange, 6x12
24
90444-430-000
Washer, thrust, 25.2x30
25
90454-KF0-000
Washer, thrust, 17mm
26
90461-286-000
Washer b (25mm)
27
90462-323-000
Washer, lock (25mm)
28
90464-KF0-000
Wash,spline 22mm
29
90464-444-000
Шайба
30
90455-ML7-000
Шайба (22mm)
31
90601-107-000
Стопорное кольцо (25mm)
32
90602-360-000
Set-ring
33
91002-HA5-003
Bearing (22)
34
91004-KN5-671
Bearing (17x44x12)
35
91005-KS4-003
Bearing (62/22)
36
91008-KN5-671
Подшипник (6203)
37
91203-KF0-004
Oil sel,17x34x4.5
38
91205-HA5-000
Oil seal 22x35x8
