Трансмиссия для мотоциклов Honda XLX350 (1988)

Москва и регионы России

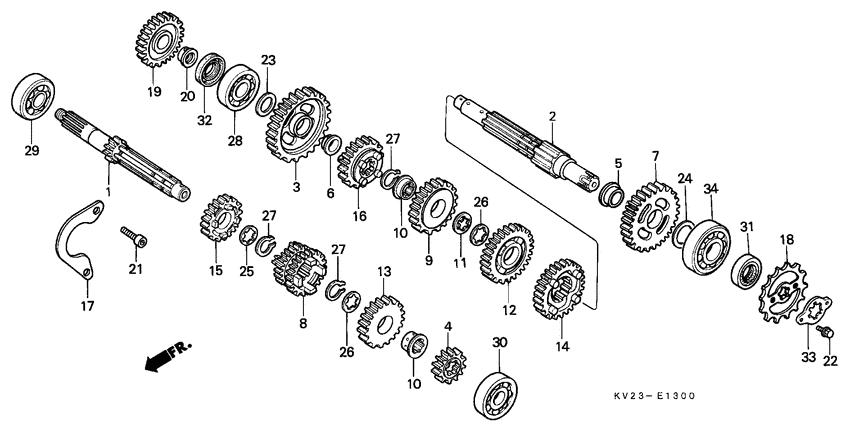

Трансмиссия

Honda XLX350

Трансмиссия

Трансмиссия

1

2

3

4

5

6

7

8

9

10

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

26

27

27

27

28

29

30

31

32

33

34

#

oem код

название

цена

1

Mainshaft,transmi

Mainshaft,transmi

2

Countershaft comp

Countershaft comp

3

Gear,low counter

Gear,low counter

замена

Gear low c/shaft

Gear low c/shaft

4

Gear,m/shaft 2nd

Gear,m/shaft 2nd

5

Bush,23mm

Bush,23mm

6

Bush,20mm

Bush,20mm

7

Gear,second count

Gear,second count

8

Gear,mainshaft

Gear,mainshaft

9

Gear,ct/shaft 3rd

Gear,ct/shaft 3rd

10

Collar,24mm

Collar,24mm

11

Шайба, стопорная

Шайба, стопорная

12

Gear,fourth,count

Gear,fourth,count

13

Gear,m/shaft 5th

Gear,m/shaft 5th

14

Gear 1st c/shaft

Gear 1st c/shaft

15

Gear,top,main sha

Gear,top,main sha

16

Gear top c/shaft

Gear top c/shaft

17

Plate,brg set

Plate,brg set

18

Sprocket,drive

Sprocket,drive

замена

Sprocket,drive(14

Sprocket,drive(14

19

Gear,kick st idle

Gear,kick st idle

20

Bush,14mm

Bush,14mm

21

96600-060-160-0

Болт

Болт

SOCKET, 6X16

замена

Bolt,socket 6x16

Bolt,socket 6x16

22

Bolt, flange, 6x12

Bolt, flange, 6x12

23

Washer, thrust, 17mm

Washer, thrust, 17mm

24

Washer, thrust, 20mm

Washer, thrust, 20mm

25

Wash,spline 22mm

Wash,spline 22mm

26

Шайба

Шайба

27

Set-ring

Set-ring

28

Bearing (17x44x12)

Bearing (17x44x12)

29

Bearing (62/22)

Bearing (62/22)

замена

Bearing (62/22)

Bearing (62/22)

30

Подшипник (6203)

Подшипник (6203)

31

Oil seal,20x35x8

Oil seal,20x35x8

32

Oil sel,17x34x4.5

Oil sel,17x34x4.5

замена

Oil seal 17x34x4,5

Oil seal 17x34x4,5

33

Plate b, fixing

Plate b, fixing

34

Bearing, radial ball, 6304

Bearing, radial ball, 6304
