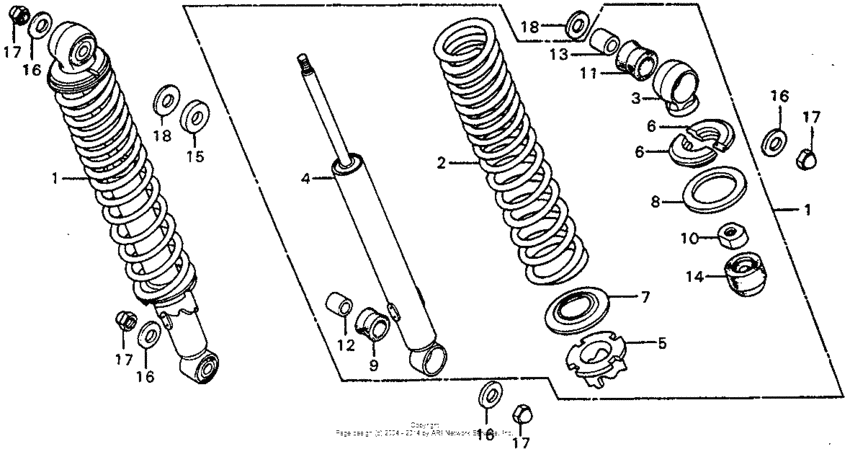

Rear shock absorber 77-78

Honda XL75

Honda
Rear shock absorber 77-78
#oem кодцена
1
52400-152-013
Cushion assy.,rr.
2
52401-152-003
Spring,rr cushion
3
52403-317-700
Joint,upper
4
52410-152-013
Damper comp.,rr.
5
52422-455-000
Adjuster,spring
6
52424-331-003
Stopper,cushion
7
52458-317-700
Seat,spring under
8
52459-074-003
Seat,rr cushion
9
52476-001-020
Bush, rr.
10
52482-331-003
Nut,lock 9mm
11
52485-118-000
Bush,rub.rr.cush.
12
52486-001-000
Манжета
13
52496-040-000
Резинка
14
52517-331-003
Rubber,rr cushion
15
90401-383-670
Washer, plain, 12mm
16
90551-033-000
Washer, sprocket setting
17
94021-100000S
Nut, cap, 10mm
18
94101-12000
Шайба
