Frame body для мотоциклов Honda XL650V Transalp (2006)

Москва и регионы России

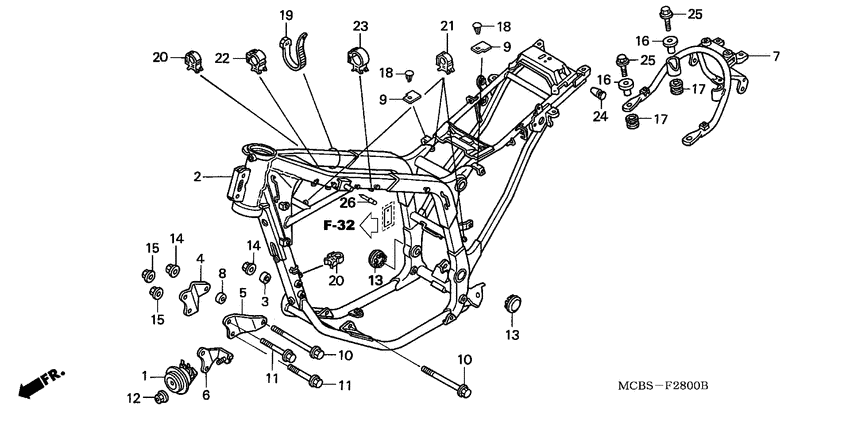

Frame body

Honda XL650V Transalp

Frame body

Frame body

1

2

3

4

5

6

7

8

9

9

10

10

11

11

12

13

13

14

14

15

15

16

16

17

17

18

18

19

20

20

21

22

23

24

25

25

26

#

oem код

название

цена

1

Horn comp(low)

Horn comp(low)

2

50100-MCB-960ZA

Frame bod*nh300m*

Frame bod*nh300m*

3

Collar,r eng hang

Collar,r eng hang

4

Plate.r enghanger

Plate.r enghanger

5

Plate.l enghanger

Plate.l enghanger

6

Stay,horn

Stay,horn

7

Pipe comp,rear

Pipe comp,rear

8

Collar, fr. engine hanger (a)

Collar, fr. engine hanger (a)

9

Rubber,seat touch

Rubber,seat touch

10

Bolt, flg (10x155)

Bolt, flg (10x155)

11

Bolt, flange, 8x92

Bolt, flange, 8x92

12

Nut, flange, 8mm

Nut, flange, 8mm

13

Крышка

Крышка

14

Nut, flange, 10mm

Nut, flange, 10mm

15

Nut, hex., 8mm

Nut, hex., 8mm

16

Collar,rr pipe mt

Collar,rr pipe mt

17

Rubber,carrier mt

Rubber,carrier mt

18

Clip, anchor

Clip, anchor

19

Хомут

Хомут

SUCTION HOSE(BLACK)

20

Clip, cable, 10mm

Clip, cable, 10mm

21

Clip, cable, 15mm

Clip, cable, 15mm

22

Clip, cable, 20mm

Clip, cable, 20mm

23

Clip, cable (30mm)

Clip, cable (30mm)

24

Затычка

Затычка

25

95701-080-380-7

Bolt,flange,

Bolt,flange,

26

Rivet blind 2,4x7

Rivet blind 2,4x7
