Rear cushion для мотоциклов Honda XL600V Transalp (1996)

Москва и регионы России

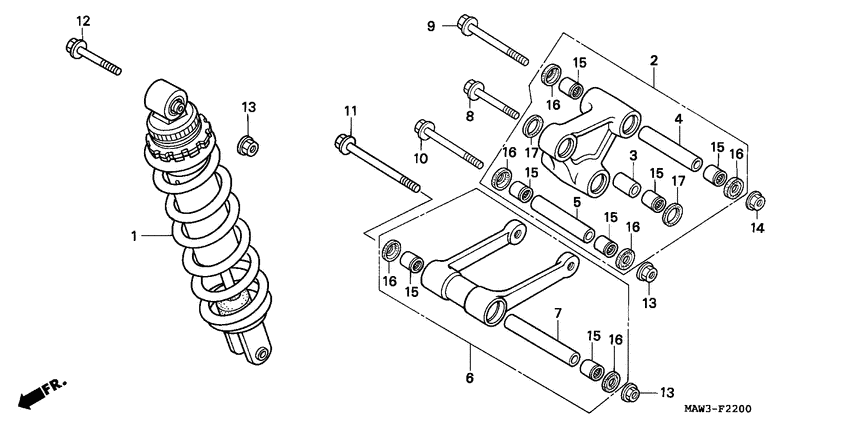

Rear cushion

Honda XL600V Transalp

Rear cushion

Rear cushion

1

2

3

4

5

6

7

8

9

10

11

12

13

13

13

14

15

15

15

15

15

15

15

16

16

16

16

16

16

17

17

#

oem код

название

цена

1

Cushion assy,rear

Cushion assy,rear

2

Arm assy.,cushion

Arm assy.,cushion

3

Collar,damper low

Collar,damper low

4

Collar a,cush.arm

Collar a,cush.arm

5

Collar b,cushion

Collar b,cushion

6

Rod assy.,cush co

Rod assy.,cush co

7

Collar,cushion co

Collar,cushion co

8

Bolt,flange 10x45

Bolt,flange 10x45

9

Болт

Болт

10

Болт

Болт

11

Bolt,flg.,10x118

Bolt,flg.,10x118

12

Болт

Болт

13

Nut, u, 10mm

Nut, u, 10mm

14

Nut, flange, 12mm

Nut, flange, 12mm

15

Подшипник

Подшипник

16

Oil seal (17.5x26x5)

Oil seal (17.5x26x5)

17

Seal,cush arm 17.

Seal,cush arm 17.
