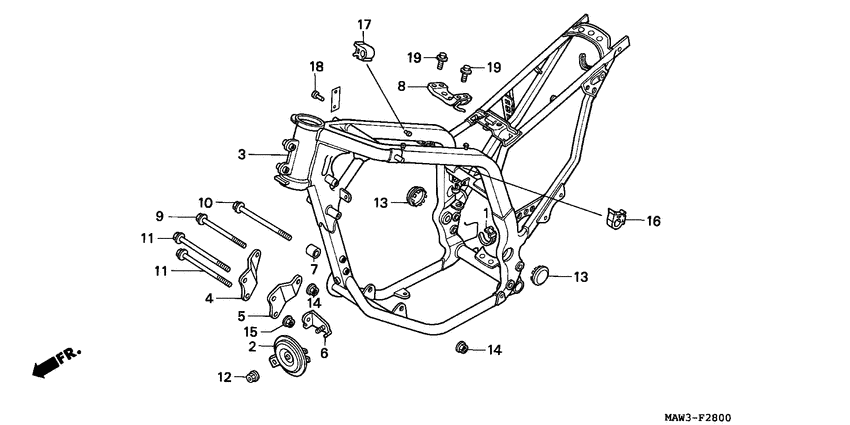

Frame body

Honda XL600V Transalp

Honda
Frame body
#oem кодцена
1
32161-404-610
Хомут
2
38120-MM9-018
Horn comp.,low
3
50100-MAW-620ZA
Frame bod*nh146m*
4
50181-MAW-620
Plate,r fr.eng.ha
5
50182-MAW-620
Plate,l fr.eng.ha
6
50183-MAW-760
Stay,horn
замена
50183-MS8-000
Stay,horn
7
50184-MM9-000
Collar,r eng hng
8
50185-MAW-760
Bridge,main pipe
замена
50185-MAW-620
Bridge,main pipe
9
90103-GC2-920
Bolt, engine hanger
10
90103-147-000
Bolt, engine hanger
11
90122-KK4-000
Bolt,flg,8x87
12
90208-425-870
Nut, flange, 8mm
13
90302-MS6-620
Крышка
14
90308-382-670
Nut, flange, 10mm
15
90309-357-000
Nut, hex., 8mm
16
90690-GHB-631
Clip, cable, 8mm
17
90690-GHB-651
Clip, cable, 15mm
18
90841-001-000
Голвка вилта
19
95701-060-100-0
Болт
